Forward Bin Tipper Slip-on Forklift Bulk Bin Tippers FBT-M

Price: AUD $4,697.00 (Ex GST AUD $4,270.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

FBT-M Forward Bulk Bin Tipper Forklift Attachment is a slip-on attachment for transporting and emptying Mega bins and other suitable bins, providing 180-degree rotation with manual operation and no hydraulic connection.

Features of FBT-M Forward Bulk Bin Tipper:

180-degree bin rotation allows most suitable bins to be fully rotated for fast and convenient emptying.
Operator-controlled tipping allows rotation to be carried out from the forklift operator's seat without requiring the operator to dismount.
Manual self-tipping mechanism provides straightforward operation without requiring a hydraulic connection to the forklift.
Slip-on forklift attachment allows quick connection to a suitable forklift for efficient worksite bin handling.
Safety chain retention helps prevent accidental disengagement of the attachment from the forklift fork arms.
Custom bin configurations can be manufactured to suit particular bin sizes, with custom manufacture priced on application.
Two finish options are available, with a choice of enamel paint or hot-dip galvanised finish.

Specifications for FBT-M Forward Bulk Bin Tipper:

Specification	Details
Working Load Limit:	1500kg / 1.5 Tonne
Rotation Angle:	180 degrees
Fork Pocket Size:	185 x 65mm
Fork Pocket Centres:	635mm
Unit Weight:	180kg
Suitable Bin Type:	Mega bins; custom manufacture available for other suitable bin sizes
Operation:	Manual self-tipping mechanism
Hydraulic Connection:	Not required
Attachment Type:	Slip-on forklift attachment
Safety Retention:	Safety chain to help prevent accidental disengagement from the fork arms

FBT-M Forward Bulk Bin Tipper Models:

Order Code	WLL	Rotation	To Suit	Operation	Finish
FBT-MG	1500kg / 1.5 Tonne	180 degrees	Mega bins	Self-tipping mechanism	Hot-dip galvanised
FBT-MP	1500kg / 1.5 Tonne	180 degrees	Mega bins	Self-tipping mechanism	Enamel paint

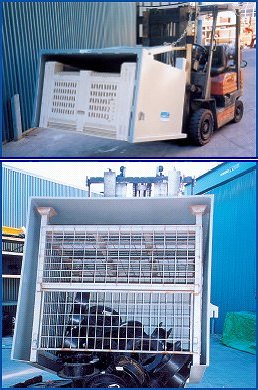

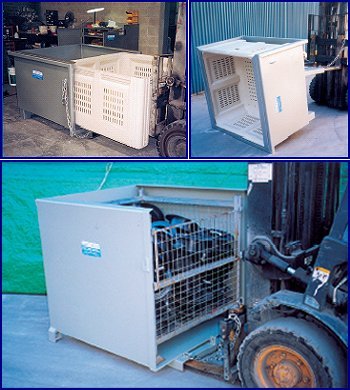

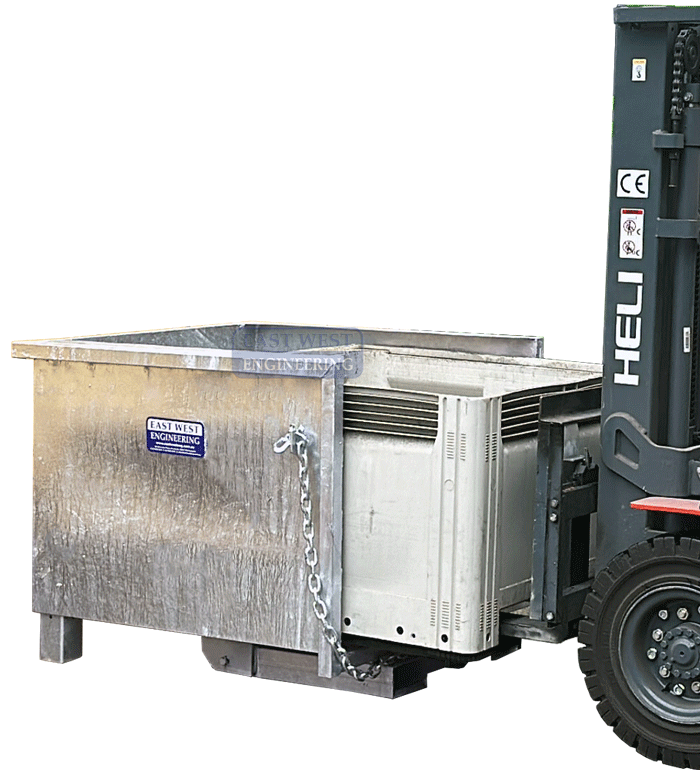

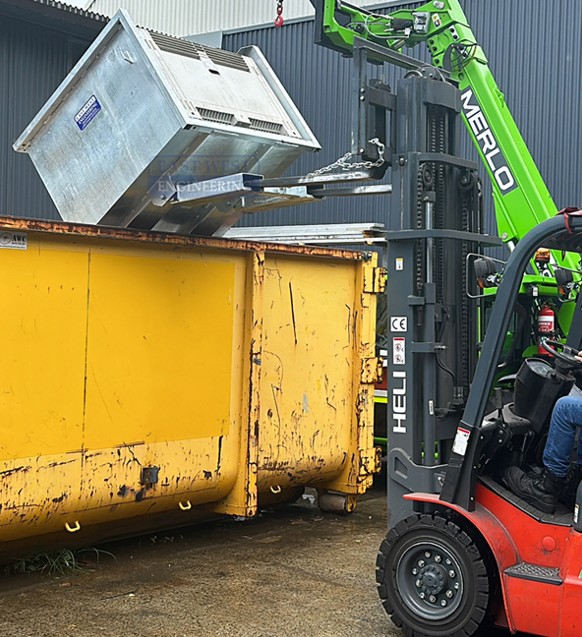

FBT-M forward bulk bin tipper forklift attachment FBT-M forklift attachment tipping a bulk bin

This forklift bulk bin tipper is suited to worksites, warehouses, manufacturing areas and other materials handling applications requiring efficient transport and emptying of Mega bins or compatible bulk containers. It can also be custom manufactured for specific bin sizes.
