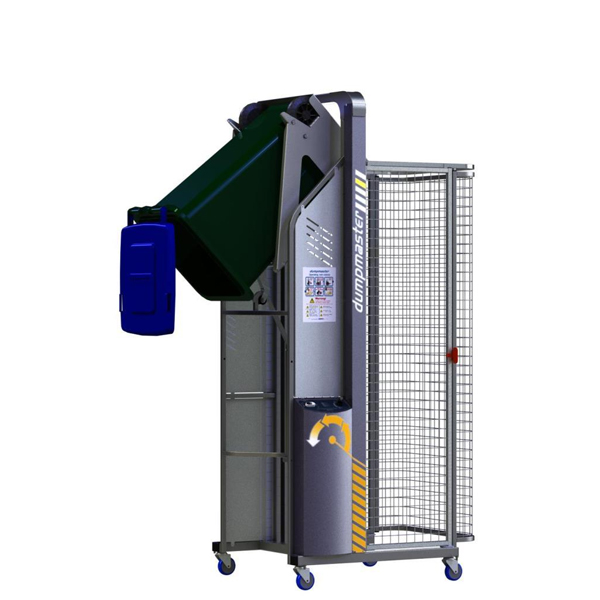

The Dumpmaster Electro-Hydraulic Bin Tipper lifts and tips wheelie bins safely at heights from 700mm to 1800mm, with a compact footprint, full guarding and capacity up to 300kg for industrial material handling.
Features of Dumpmaster Electro-Hydraulic Bin Tipper:
- Vertical lift and controlled tipping action raises bins straight up before gently tipping them forward over a skip, hopper or mixer.
- Compatible with common wheelie bins including 80L, 120L, 140L and 240L sizes without adjustment.
- Electro-hydraulic lifting system uses a hydraulic power pack, ram and twin lifting chains for reliable operation.
- Pressure relief protection helps prevent overloading, while a pressure-compensating valve regulates lowering speed.
- IDEC interlocking safety door and full guarding help protect operators during lifting and tipping.
- Simple push-button operation allows standard drums and bins to be emptied without clamping in suitable applications.
- Hot-dip galvanised main frame with zinc-plated, pre-galvanised or powder-coated components provides long service life and low maintenance.
- Suitable for indoor and outdoor use with weatherproof controls and construction designed for regular wash-down.
- Compact footprint uses less than 1m2 of floor space while keeping the bin load within the machine footprint for stability.
- Multiple tipping heights are available, with standard models at 700mm, 1200mm, 1500mm and 1800mm, plus custom configurations up to 6m.
- Easy to reposition using four 100mm non-marking industrial castors, including two braked castors, or optional bolt-down lugs.
- Custom cradle options allow the machine to be configured for a wide range of bin and drum sizes, shapes and weights.
Specifications for Dumpmaster Electro-Hydraulic Bin Tipper:
| Specification | Details |
|---|
| Standard Capacity: |
250kg |
| Optional Capacity: |
300kg |
| Power: |
24V battery operated |
| Standard Bin Sizes: |
80L, 120L, 140L and 240L wheelie bins |
| Standard Tipping Heights: |
700mm, 1200mm, 1500mm and 1800mm |
| Custom Tipping Height: |
Up to 6m |
| Machine Width: |
950mm |
| Machine Length: |
1150mm |
| Castors: |
Four 100mm non-marking industrial castors, two with brakes |
Dumpmaster Model Dimensions:
| Tipping Height | Width | Length | Overall Height |
|---|
| 700mm |
950mm |
1150mm |
1765mm |
| 1200mm |
950mm |
1150mm |
2265mm |
| 1500mm |
950mm |
1150mm |
2565mm |
| 1800mm |
950mm |
1150mm |
2865mm |
Options and Accessories for Dumpmaster Bin Tippers:
- Stainless steel construction is available in full or partial configurations for hygiene-critical or corrosive environments.
- Additional safety options include E-Stop controls, master lockout switch, certified door latch and Category 3 safety certification.
- Custom guarding options include polycarbonate splash shields, PET-G guarding, sheet metal guarding and foot guard panels.
- Operational upgrades include auto-cycle control, variable speed drive, digital scales and solar panel options.
- Custom cradles and tip chutes can be configured for specialised bin, drum and discharge requirements.
MegaDumper Heavy-Duty Bin Tipper:
- 750kg capacity for heavier and larger commercial waste bins.
- Compatible with larger wheelie bins including 660L and 1000-1100L sizes, plus square and rectangular bins.
- Multi-purpose cradle options can accommodate multiple bin sizes without adjustment.
- Custom tipping heights can be specified to suit practical site requirements.
- Galvanised or stainless steel construction is available depending on environmental and hygiene requirements.
The Dumpmaster bin lifter and bin tipper is suited to factories, workshops, hospitals, schools and warehouses for emptying wheelie bins into skips, hoppers, mixers and other elevated receiving points.
Freight is excluded from listed pricing. Please contact the R.J. Cox office for freight costs, current lead times and pricing for custom configurations.
