Fallshaw Steel Centred Pneumatic Castors are designed for strength and performance,
made to the highest standard for the ultimate in reliability and lifespan.
Features of Fallshaw Pneumatic Wheel Set:
- These are black neoprene general-purpose tires with a 4-ply construction, suitable for outdoor use.
- Cross lines tread pattern on a fairly flat tread surface
- Steel-centred 1.8mm body
- Welded Steel Heavy-Duty Mounting Plate available in ISO or NA

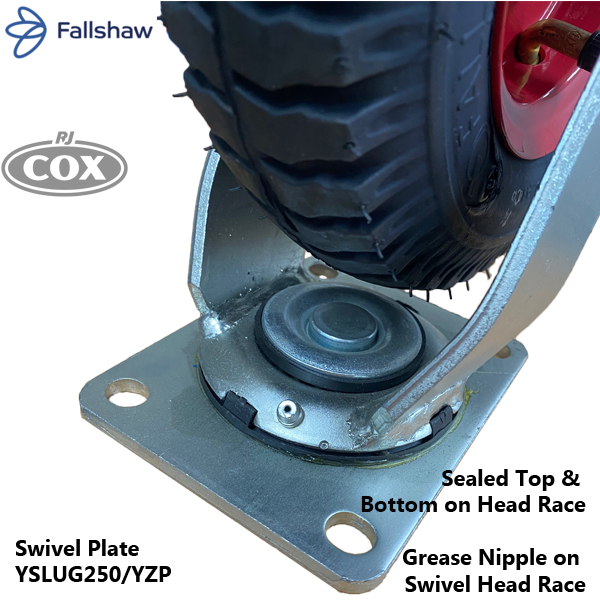

- Sealed Top and bottom Head Races to protect precision bearings
- Grease Nipple on Swivel Head Race
- Wobble free design
- Deep groove ball bearing
Specifications for Fallshaw Pneumatic Wheel Set:
| Mounting Height: |
250mm |
| Max Load: |
120kg per castor |
| Turning radius on swivel castor: |
200mm |
| Tyre Size: |
2.50-4 |
| Wheel Diameter: |
220mm |
| Tread Width: |
54mm |

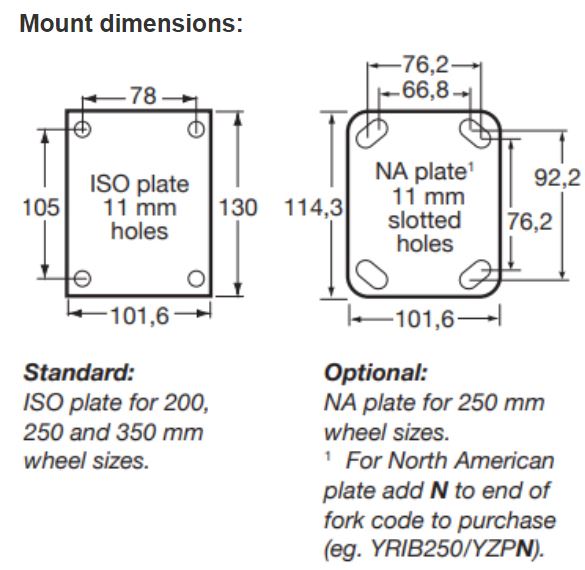

The Standard Set includes an ISO base plate, while the NA Base Plate is available upon request. Please see the drawing below for plate and hole centre dimensions.
Individual Part Numbers:
YSLUG250/YZP Swivel Plate (Set includes 2)

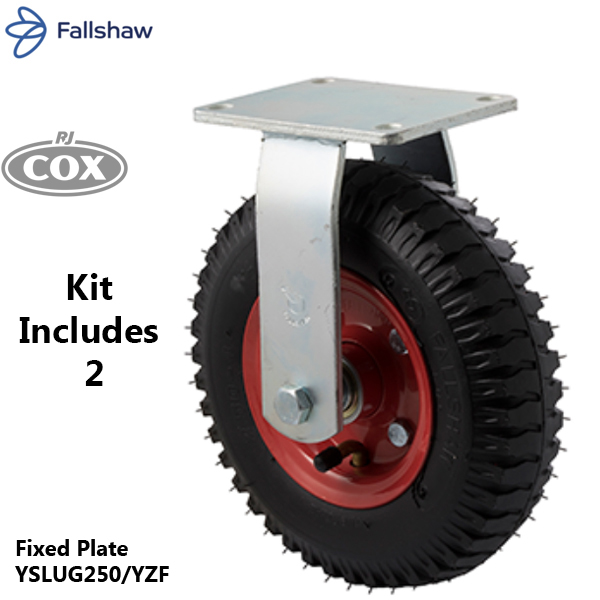

YSLUG250/YZF Fixed (Set includes 2)
