The Fallshaw Y Series 200x50 LUG Pneumatic & Puncture-proof Castors offer several benefits:
Grey Neoprene Wheels: The castors feature 200mm diameter wheels made of grey neoprene rubber, providing durability and traction.

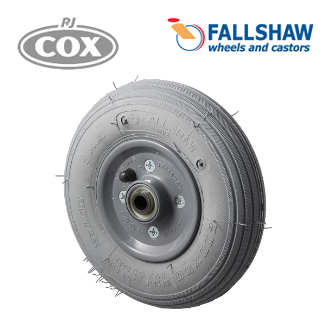

Pneumatic or Polyurethane Foam-filled Wheels: The wheels are available in either pneumatic or polyurethane foam-filled options, offering versatility and resilience against punctures.
RIB Tyre Tread: The tread design consists of straight lines, enhancing traction and stability while also being non-marking. This makes them suitable for various applications, including wheelchairs and light-duty trolleys that require a smoother ride.

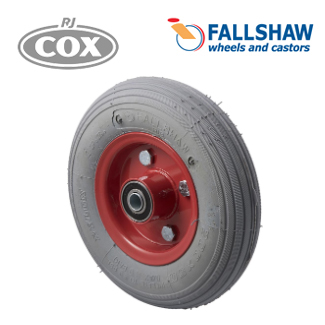

Steel or Polypropylene Rim: The castors are equipped with either steel or polypropylene rims, ensuring strength and durability to withstand heavy loads and frequent use.
Precision Bearing: The castors are fitted with precision bearings, promoting smooth and efficient rolling motion.

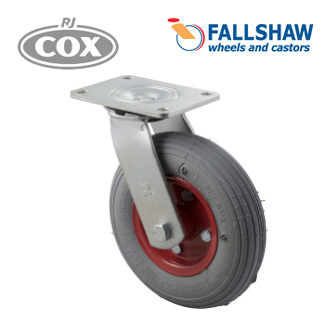

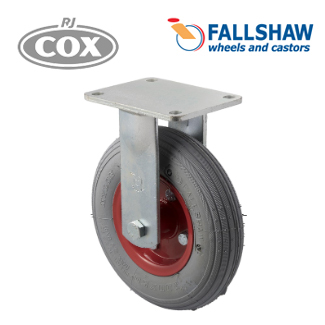

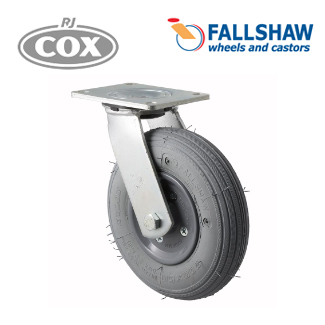

Fixed and Swivel Plate Castors (Zinc Plated): These castors come in both fixed and swivel plate configurations, allowing for flexibility in maneuverability and installation.
Base Plate Options - Standard ISO: The castors offer standard ISO base plate options, ensuring compatibility with various equipment and applications.
These castors provide a reliable and versatile solution for various industrial, commercial, and healthcare settings, offering durability, maneuverability, and performance.
NB: Do NOT inflate over recommended tyre inflation pressure 30psi
Do NOT allow tyre pressure to drop below 20 psi or it may deflate and be difficult to re-inflate, requiring a new inner tube to be fitted.
Specifications of Y Series Grey Rubber 200mm dia RIB Wheels & Castors
Diameter: | 200mm |
Tread: | 50mm |
Bearing: | Precision Bearing for Puncture Proof - Steel Rim |
Roller Bearing for Pneumatic - Plastic Rim | |
Material: | Grey Neoprene (Rubber) - Non-makring |
Forks: | Zinc Plated |
Base Plate: |
ISO (Standard) |
Castor Code | Description | Rim | Diameter x Tread (mm) |
Max Load (kg) |
Mount Height (mm) |
Turning Radius (mm) |
YPRIB250 | 200mm Puncture-Proof | Steel | 200 x 50mm | 50 | - | - |
YPRIB250/YZP | Swivel Plate | 238 | 155 | |||
YPRIB250/YZF | Fixed Plate | 238 | - | |||
YRIB250 | 200mm Pneumatic | Polypropylene |
200 x 50mm |
75 |
- | - |
YRIB250/YZP | Swivel Plate | 238 | 155 | |||
YRIB250/YZF | Fixed Plate | 238 | - |
LUG Tyre
Tread Pattern
Puncture-Proof
Polyurethane Foam-Filled Pneumatics
