Drop Bottom Bins provide efficient transport and discharge of site waste using a forklift or overhead crane, with heavy-duty steel construction, drop-floor emptying and 0.5, 0.8 or 1.1 m³ capacity options.
Features of Drop Bottom Bins:
- Three capacity options let users choose a bin suited to different waste-handling requirements.
- Heavy-duty 3mm reinforced plate construction provides strength and durability for demanding industrial waste applications.
- Forklift or overhead crane handling provides flexible transport between work areas and disposal points.
- The drop-floor discharge mechanism lets the base release from one side, emptying contents without tipping the entire bin.
- The draw-rope release handle activates the drop floor for quick, efficient waste discharge.
- Powerful shock absorbers help absorb impact forces during emptying and reduce stress on handling equipment.
- Automatic locking mechanism secures the base when the bin is lowered to the ground, helping prevent accidental opening during transport.
- The enamel paint finish protects against rust and corrosion while improving durability.

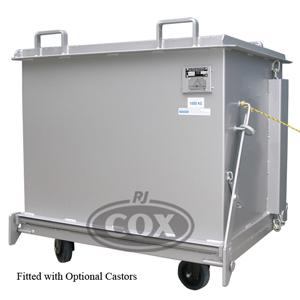

- Optional cast iron or rubber wheels are available separately for additional mobility.
- An optional galvanised lid is available separately; pricing is available on application.
Specifications for Drop Bottom Bins:
| Specification | Details |
| Safe Working Load: |
1000kg |
| Construction: |
Heavy-duty 3mm reinforced plate |
| Fork Pocket Size: |
160 x 65mm |
| Fork Pocket Centres: |
684mm |
| Length: |
1200mm |
| Width: |
1025mm |
| Maximum Unit Weight: |
250kg |
| Finish: |
Enamel paint |
Drop Bottom Bin Models:
| Model | Capacity | Dimensions (L x W x H) | Fork Pocket Size | Fork Pocket Centres | Unit Weight |
| DBC500: |
0.5m³ |
1200 x 1025 x 745mm |
160 x 65mm |
684mm |
200kg |
| DBC800: |
0.8m³ |
1200 x 1025 x 1045mm |
160 x 65mm |
684mm |
225kg |
| DBC1100: |
1.1m³ |
1200 x 1025 x 1345mm |
160 x 65mm |
684mm |
250kg |
Ideal for construction sites, factories, warehouses, and industrial waste handling, these drop-bottom bins, crane bins, and forklift waste bins let you transport and discharge site waste efficiently into larger skips, bins, or dump trucks.
