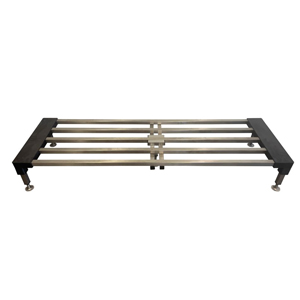

Mantova Galvanised Dunnage Racks are heavy-duty storage racks designed to keep products elevated above the floor. They support evenly distributed loads up to 450kg, with longer models fitted with a central support leg.
Features of Mantova Galvanised Dunnage Racks:
- Heavy-duty construction uses durable 25 x 25mm square tube to support substantial loads in commercial and industrial storage areas.
- Glass-filled nylon ends have no holes, helping provide a cleaner and more even shelf surface.
- Full usable shelf surface provides an even platform for storing products and containers.
- Elevated storage design provides 150mm of ground clearance using 200mm high posts.
- Adjustable posts are supplied with an adjustable foot and base flange.
- Galvanised finish provides a durable surface for demanding storage environments.
- Fully welded construction is available on application for load requirements greater than 450kg.
Specifications for Mantova Galvanised Dunnage Racks:
| Specification | Details |
|---|
| Shelf Lengths: |
600mm, 750mm, 900mm, 1050mm, 1200mm and 1350mm |
| Long Shelf Lengths: |
1500mm, 1650mm and 1800mm with central support leg added |
| Post Height: |
200mm |
| Ground Clearance: |
150mm |
| Shelf Construction: |
25 x 25mm polished stainless steel square tube |
| Shelf Ends: |
Glass-filled nylon ends |
| Load Capacity: |
450kg evenly distributed across the shelf |
| Heavy-Duty Option: |
Fully welded construction available for loads greater than 450kg, priced on application |
| Finish: |
Galvanised |
| Post Fittings: |
Adjustable foot and base flange |
Shelf Depth and Tube Spacing:
| Shelf Depth | Distance Between Tubes |
|---|
| 450mm |
Approx. 79mm |
| 525mm |
Approx. 74mm |
| 600mm |
Approx. 88mm |
Options for Mantova Galvanised Dunnage Racks:
- Heavy-duty stainless steel disc foot is available as an alternative foot option.
- Fully welded heavy-duty construction is available for applications requiring load capacity greater than 450kg, priced on application.
- 304-grade polished stainless steel dunnage racks are available as an alternative finish and construction option.
- Two-tier configurations are available and priced on application.
- Real Tuff shelving configurations can be added using standard Real Tuff shelving. See Real Tuff Post Style Dunnage Shelving.
These heavy-duty dunnage racks are ideal for warehouses, food storage areas, commercial kitchens, cool rooms and other applications where stock needs to be kept elevated from the floor. They can also be used as low-level storage racks, food storage racks or floor-clearance shelving.
