Low-profile pallet lift tables facilitate the loading and unloading of palletised goods more ergonomically and efficiently.
Here's a breakdown of the key features:
Low Clearance: Don't require a pit or load ramps. This can be advantageous for specific applications where space or infrastructure limitations may be a concern.

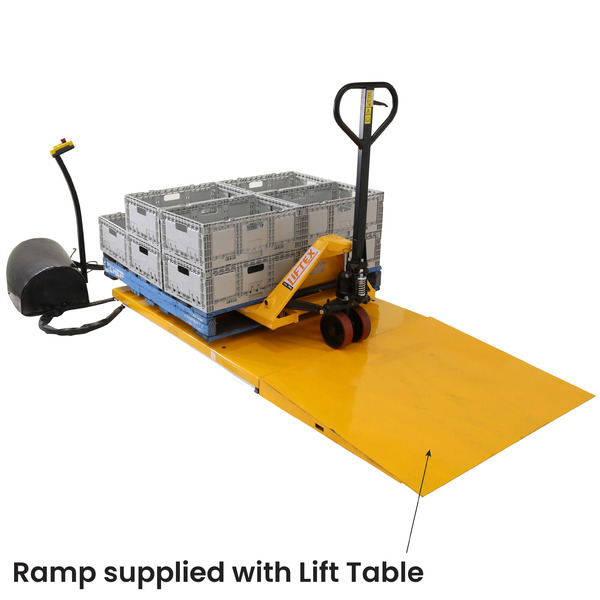

Entry Ramp: Includes an entry ramp that allows easy entry for pallet trucks, streamlining the loading and unloading process.
Optional Rotator Ring: The availability of a rotator ring as an option (product SKU TR2140) can be customised to meet specific handling requirements, allowing for the rotation of pallets for easier access to goods.
Safety Features: The upper platform is equipped with a safety perimeter to prevent descent in the event of contact with obstructions, enhancing workplace safety.

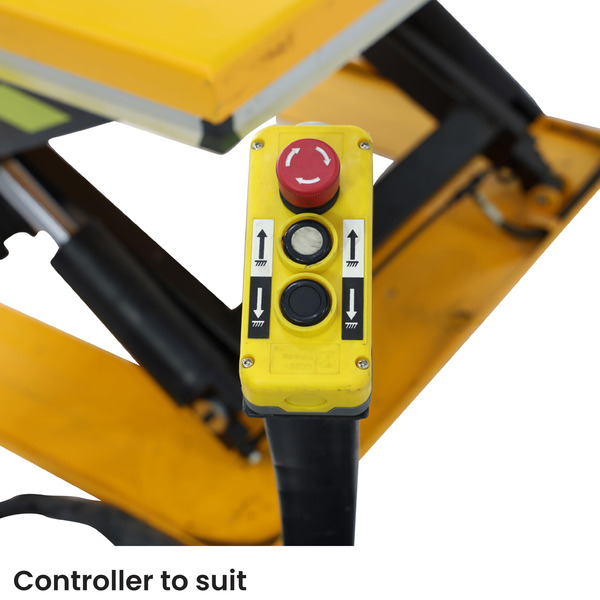

The control box operates on 24v and includes UP and DOWN buttons and an emergency stop feature for quick response in unexpected situations.
Power Pack: The external power pack comes with a relief valve to guard against overloading and a compensating flow valve to control the lowering speed of the lift table. These features contribute to the safe and controlled operation of the equipment.
Hose Burst Safety Valve: Including a hose burst safety valve is a critical safety measure, ensuring that the lift table won't lower during hose breakage and preventing accidents and injuries.
Removable Lifting Eyes: The presence of removable lifting eyes makes handling and installation of the lift table more convenient.
Oil-less Bushings: Oil-less bushings on pivot points contribute to reduced maintenance requirements, as they don't require regular lubrication.
Code | Capacity | Table Size | Lowered Height | Max. height |
TR2100 | 1000kg | 1140x1420mm | 85mm | 880mm |
TR2101 | 2000kg | 1180x1600mm | 105mm | 880mm |
The low-profile pallet lift tables focus on safety, efficiency, and flexibility in handling palletised goods. They are well-equipped with features to address common challenges associated with repetitive lifting and loading tasks.
