The Stainless-Steel Bishamon Manual Scissor Lift Tables meet high-quality standards, providing numerous benefits for clean applications and heavy-duty lifting needs.
Here are the key features and benefits of these lift tables:

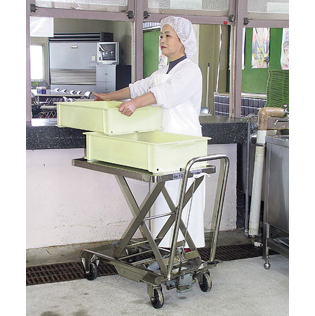

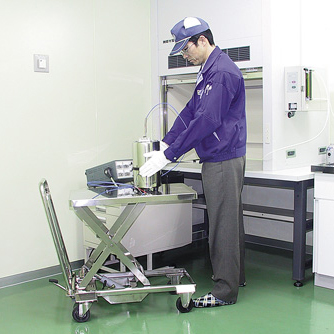

Clean Applications: The Stainless-Steel Bishamon Manual Scissor Lift Tables for Clean Applications. The stainless-steel construction ensures corrosion resistance and suits them for environments where cleanliness is a priority.
Heavy-Duty Construction: These lift tables are built with heavy-duty construction to ensure maximum stability during lifting operations. The captured scissor rollers contribute to the overall strength of the lift tables, making them reliable for handling heavy loads.
Superior Hydraulic Systems: The lift tables feature excellent hydraulic systems with an integrated pump cylinder. This design enhances reliability, ensuring smooth and efficient lifting operations.
Ergonomic Push Handle: The lift tables are equipped with an ergonomic push handle that provides ease of maneuverability. The convenient lowering control adds to the user-friendly design, allowing precise control during descent.
Safety Features: The lowering control automatically stops when released, adding an extra layer of safety during operations. Protection is crucial to the design to protect the user and the materials being lifted.
High-Quality Castors and Wheels: Fitted with two fixed and two swivel high-quality castors and wheels, these lift tables offer exceptional rollability. The high-quality components contribute to smooth movement and maneuverability.
Brake Pedal for Parking: A brake pedal on the right rear castor allows users to park the work platform securely when loading and unloading. This feature enhances safety and stability during stationary periods.
Heavy-Duty Maintenance Scissor Lock Pin: Including a heavy-duty maintenance scissor lock pin ensures that the lift tables remain secure and stable during use.
Specifications of Bishamon Manual Mobile Lift Tables:
Model: |
(kg) |
(mm) |
Min-Max (mm) |
Overall Dimensions: (mm) |
Strokes to Max. Height: |
Wheel: |
Weight (kg) |
|
Diameter (mm) |
Material | |||||||

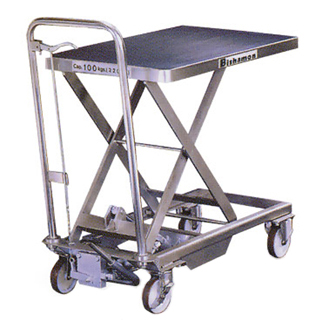

BXS-10T | 100 | 700 x 450 | 213-750 | 860 x 450 x 820 | 15 | 100 dia | stainless + nylon | 33 |
BXS-20T | 200 | 815 x 500 | 288-880 | 1010 x 500 x 900 | 25 | 100 dia | stainless + Polyurethane | 69 |

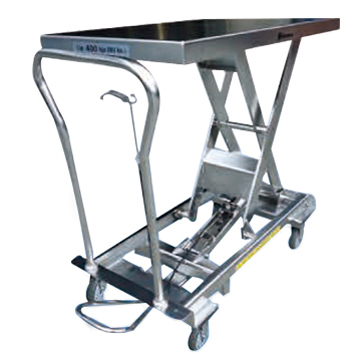

BXS-40T | 400 | 1010 x 520 | 438-1020 | 1191 x 520 x 900 | 50 | 150 dia | stainless + Polyurethane | 112 |
These Stainless-Steel Bishamon Manual Scissor Lift Tables combine quality construction, safety features, and ergonomic design, making them a reliable choice for various lifting applications, particularly in environments where cleanliness is essential.
