Electric Scissor Lift Powered Pallet Jack

Price: AUD $3,968.80 (Ex GST AUD $3,608.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

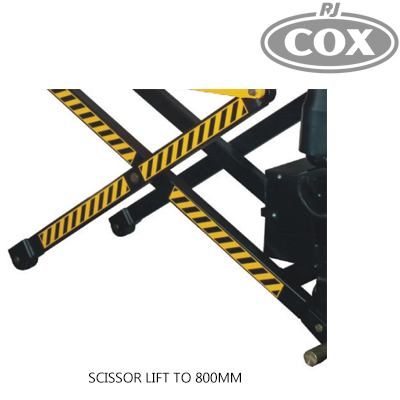

The Electric Scissor Lift Pallet Jacks 1000kg EX-540 / EX-685 combine powered and manual lifting with an 800mm maximum fork height for efficient pallet handling and load positioning.

Features of Electric Scissor Lift Pallet Jacks EX-540 / EX-685:

Electric and manual lifting provides flexible operation for different workloads and operating conditions.
Quick-lift function doubles the lifting speed for loads below 250kg.
Manual lowering control allows precise load positioning through a controlled release mechanism.
Single-cylinder system supports stable lifting without a secondary piston.

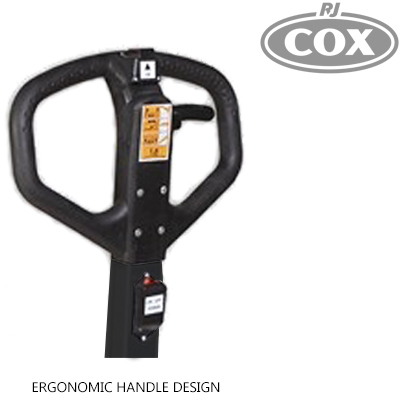

Ergonomic handle supports comfortable control during pallet movement and positioning.
Low centre of gravity improves stability and manoeuvrability in confined work areas.
Built-in battery and charger provide a self-contained electric lifting system.

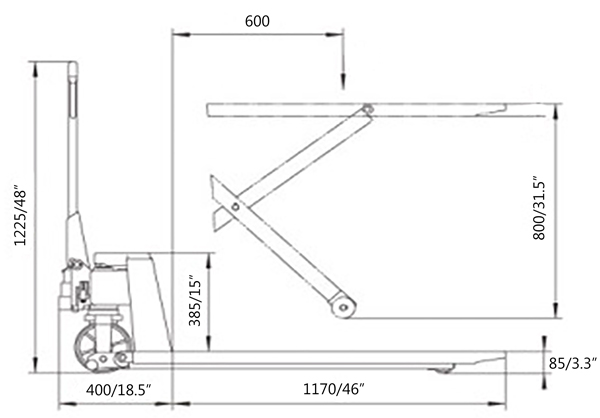

Specifications for Electric Scissor Lift Pallet Jacks EX-540 / EX-685:

Specification	Details
Operation:	Electric and manual lifting with manual lowering
Capacity:	1000kg
Fork Height Range:	85-800mm
Fork Length:	1170mm
Fork Size:	160 x 50mm
Fork Rollers:	75 x 50mm
Steer Wheels:	180 x 50mm
Battery:	12V 60Ah
Unit Weight:	169kg
Safety Standards:	EN 1757-4, EN 1175 and CE
Warranty:	1 year

Available Electric Scissor Lift Pallet Jack Models:

Model	Overall Fork Width	Capacity
EX-540:	540mm	1000kg
EX-685:	685mm	1000kg

Electric scissor lift pallet jack raising a pallet

Ideal for warehouses, workshops, production areas and packing stations, these powered scissor pallet trucks combine pallet jack transport with raised load positioning for loading, handling and workstation applications.
