Material Lifter Trolley BD1 and BD2

Price: AUD $3,206.50 (Ex GST AUD $2,915.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

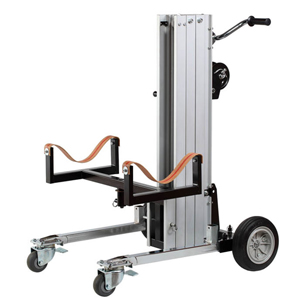

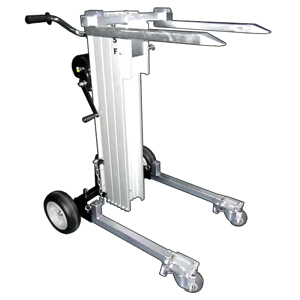

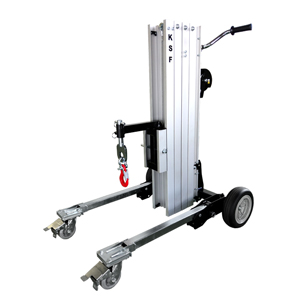

The BD Multi-Purpose Material Lifter provides compact, single-person lifting for installation, construction and materials handling, with fork, pipe cradle and jib attachments available for versatile lifting tasks.

Features of BD Multi-Purpose Material Lifter:

Multi-purpose lifting system supports a range of installation and materials handling tasks using optional fork, pipe cradle or jib attachments.
Compact transport design makes the lifter easier to move between worksites and store when not in use.
Single-person operation provides a practical lifting solution for installation and handling tasks.
90-degree load swing allows slim access through doorways as narrow as 80cm.
Adjustable wheelbase helps increase stability to suit different lifting applications.
Locking castors assist with secure positioning during setup and operation.

Specifications for BD Multi-Purpose Material Lifter:

Specification	BD1	BD2
Lifting Height:	3030mm	3740mm
Minimum Height:	170mm	170mm
Load Capacity:	180kg	180kg
Front Castors:	100mm swivel with brake	100mm swivel with brake
Rear Wheels:	250mm	250mm
Unit Weight Without Accessories:	53kg	64.3kg
Stow Dimensions:	780 x 470 x 117mm	800 x 550 x 117mm

Optional Accessories for BD Multi-Purpose Material Lifter:

Specification	BD1	BD2
Operational Dimensions with Fork:	920 x 1060 x 2880mm	970 x 1090 x 3740mm
Fork Weight:	7.7kg	97.7kg
Operational Dimensions with Pipe Cradle:	920 x 1060 x 3030mm	970 x 1090 x 3950mm
Pipe Cradle Weight:	9.3kg	9.3kg
Operational Dimensions with Jib:	920 x 1060 x 2610mm	97 x 1090 x 3470mm
Hook and Jib Weight:	5.2kg	5.2kg
Accessory Options:	Fork, pipe cradle or jib

The BD material lifter is suited to air conditioning, garage door and awning installation, construction, warehouses and general materials handling. It can also be used as a portable material lift, installation lifter or compact load lifting trolley.
