Portable Lifters CM Series Mains Powered Electric

CM Series Electric Lifters are portable aluminium lifting machines designed for single-person setup and controlled lifting to 3.3m or 4.9m, with adjustable stabilising legs for use on uneven surfaces.

Features of CM Series Electric Lifters:

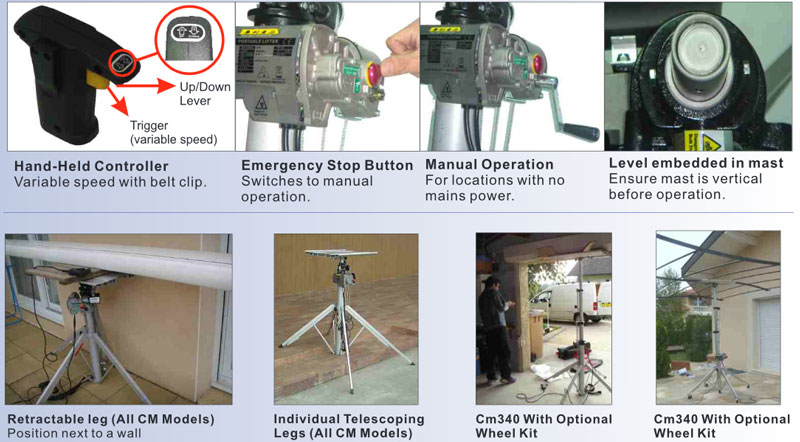

• Lightweight aluminium construction uses heat-treated aluminium for a portable and durable lifting system.
• Telescoping mast provides elevated lifting while allowing the unit to fold down for transport and storage.
• Tool-free setup allows one person to unfold, position and operate the lifter.
• Four independently adjustable legs stabilise the lifter on uneven surfaces, with one leg independently positioned for working close to walls.
• Variable-speed control provides soft starting and fine height adjustment through the trigger controller and direction switch.
• Safety controls include an emergency stop button, automatic overload clutch and built-in spirit level for mast alignment.
• Manual override allows operation during power failure using a cordless drill with a 17mm socket or the supplied handle.

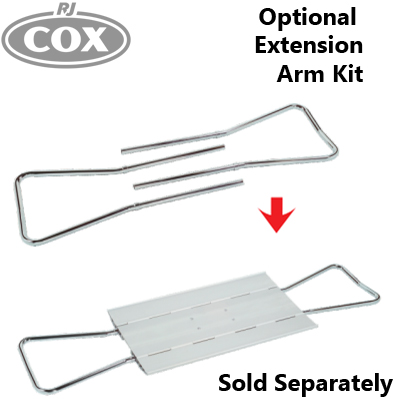

• Standard platform suits lifting items such as air conditioners, awnings and garage doors, with an optional extension arm kit available separately.

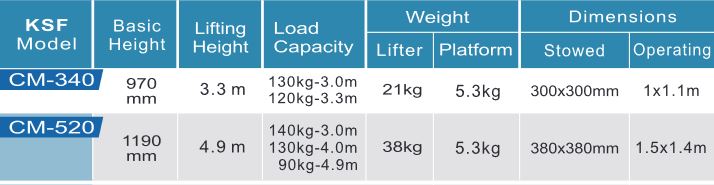

Specifications for CM Series Electric Lifters:

Available Models:

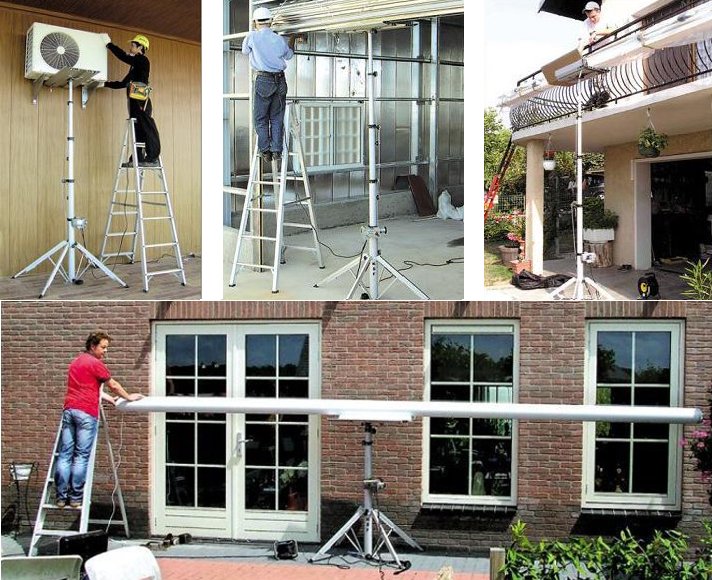

These portable material lifters suit installation and maintenance work involving air conditioners, awnings, garage doors and other elevated loads where compact transport, adjustable setup and controlled lifting are required.
