Fork Material Lifter Trolley with Hand Winch
Fork Material Lifter Trolley with Hand Winch
Price: AUD $1,683.00 (Ex GST AUD $1,530.00)
Enter your delivery location for a shipping quote...

The ML2 Multi-Purpose Lifting Trolley with Forks lifts and moves loads up to 150kg using adjustable width forks. This fork model is supplied with forks only, with standard and large platforms sold separately.

Features of ML2 Multi-Purpose Lifting Trolley with Forks ML2:

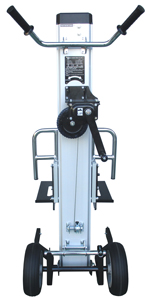

  • The external winch helps hold the load at its current height when the operator releases the handle.

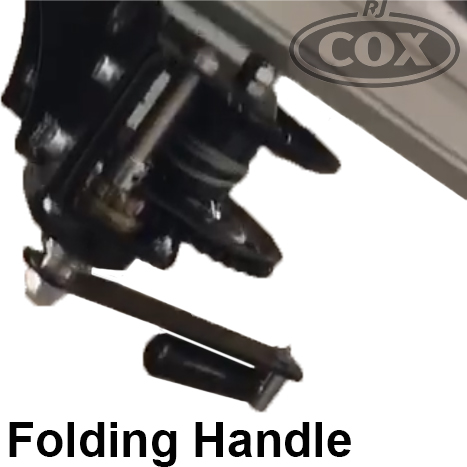

  • The fold-away winch handle allows the trolley to lay flat for easier transport and storage.
  • The single mast design keeps the lifting trolley compact, reliable and easy to position.
  • The hidden cable sits inside the mast to reduce exposure and improve operator safety.

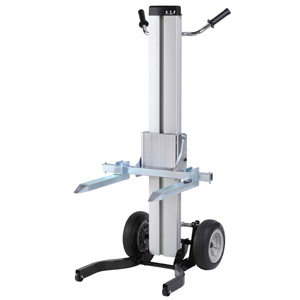

  • The supplied adjustable forks suit a range of lifting and material handling applications.
  • The foldable frame makes the material lifter easier to transport in vans and trucks or store on shelves and benches.

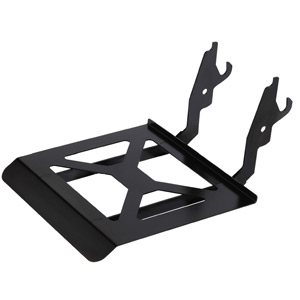

  • The optional platform compatibility allows users to purchase a standard tray platform or larger platform separately.

Specifications for ML2 Multi-Purpose Lifting Trolley with Forks ML2:

SpecificationDetails
Product Code: ML2
Supplied Accessory: Adjustable width forks only
Optional Accessories: Standard tray platform and larger platform sold separately
Maximum Capacity with Supplied Forks: 150kg
Maximum Capacity with Optional Tray: 120kg
Lifting Height: 105cm
Operating Dimensions (L x W x H): 50 x 71 x 132cm
Folded Dimensions (L x W x H): 132 x 50 x 30cm
Standard Platform Dimensions (L x W): 360 x 420mm, (sold separately)
Larger Platform Dimensions (L x W): 450 x 421mm, (sold separately)
Fork Width: 50mm
Fork Length: 460mm rear to tip
Minimum Fork Opening: 200mm between forks and 300mm edge to edge
Maximum Fork Opening: 485mm between forks and 590mm edge to edge
Sliding Allowance: 150mm
Wheel Size: 10-inch solid puncture-proof wheels
Mast Type: Single compact mast
Mast Material: Aluminium
Cable Position: Hidden inside mast
Set-Up Time: Ready to use in 30 seconds
Carton Dimensions (L x W x H): 50 x 30 x 135cm
Unit Weight: 20kg
Shipping Weight: 30.2kg

The ML2 fork lifter is suited to workshops, warehouses, delivery vehicles and maintenance areas where operators need a compact lifting cart, portable lifting trolley, fork lift trolley or material handling lift for cartons, components and equipment.
