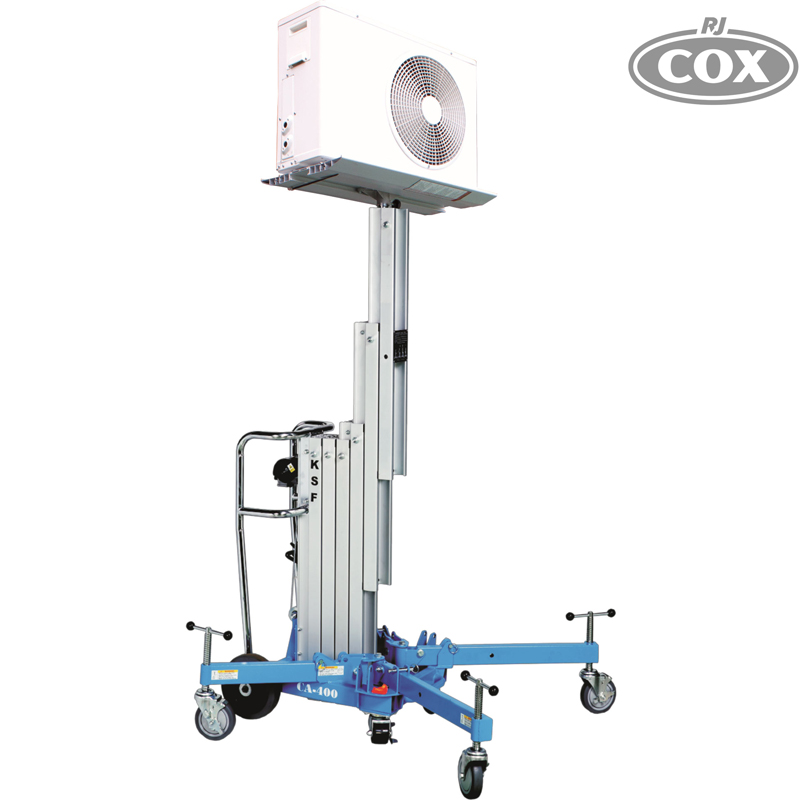

The KSF CA400-P Electric Portable Platform Lifter lifts loads up to 150kg to 4000mm, with adjustable legs, variable speed control and a portable folding design for installation and maintenance work.
Features of KSF CA400-P Electric Portable Platform Lifter:
- 150kg lifting capacity raises equipment to 4000mm for air conditioning, awning, garage door and building installations.

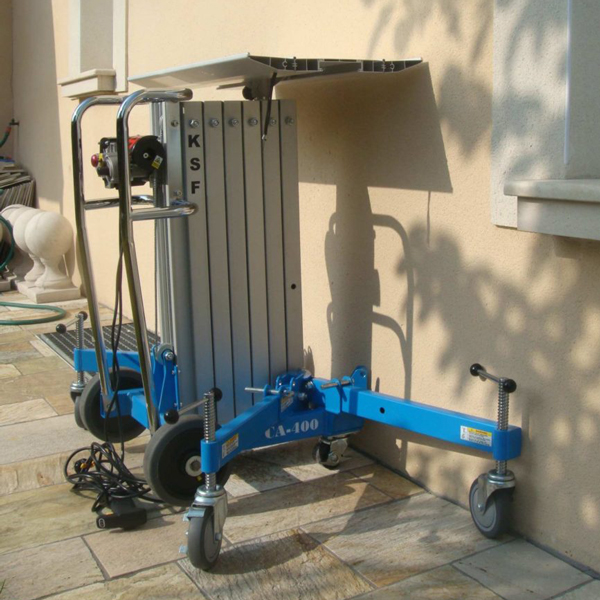

- Four adjustable support legs help stabilise the lifter on uneven ground and allow positioning close to walls.
- Variable speed control supports soft starting and precise height adjustment during lifting and positioning.

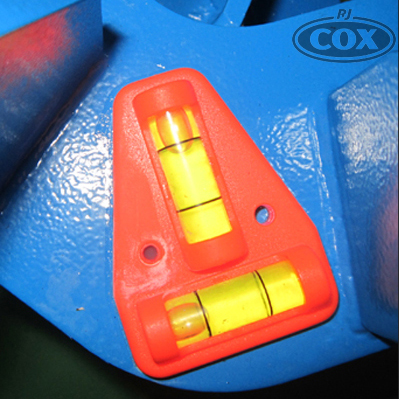

- Built-in dual spirit levels help the operator confirm the lifter is level before raising the platform.
- Automatic slipping clutch helps protect against overloading, while the emergency stop provides immediate stopping control.
- Manual backup operation allows the lifter to be lowered or operated if electrical power is unavailable.

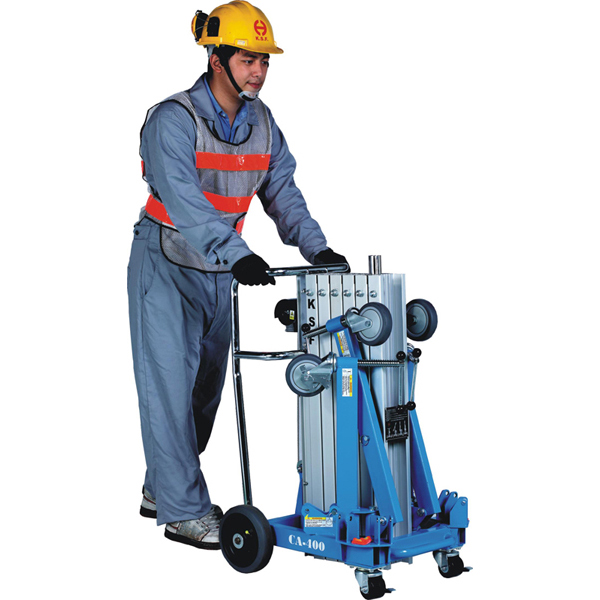

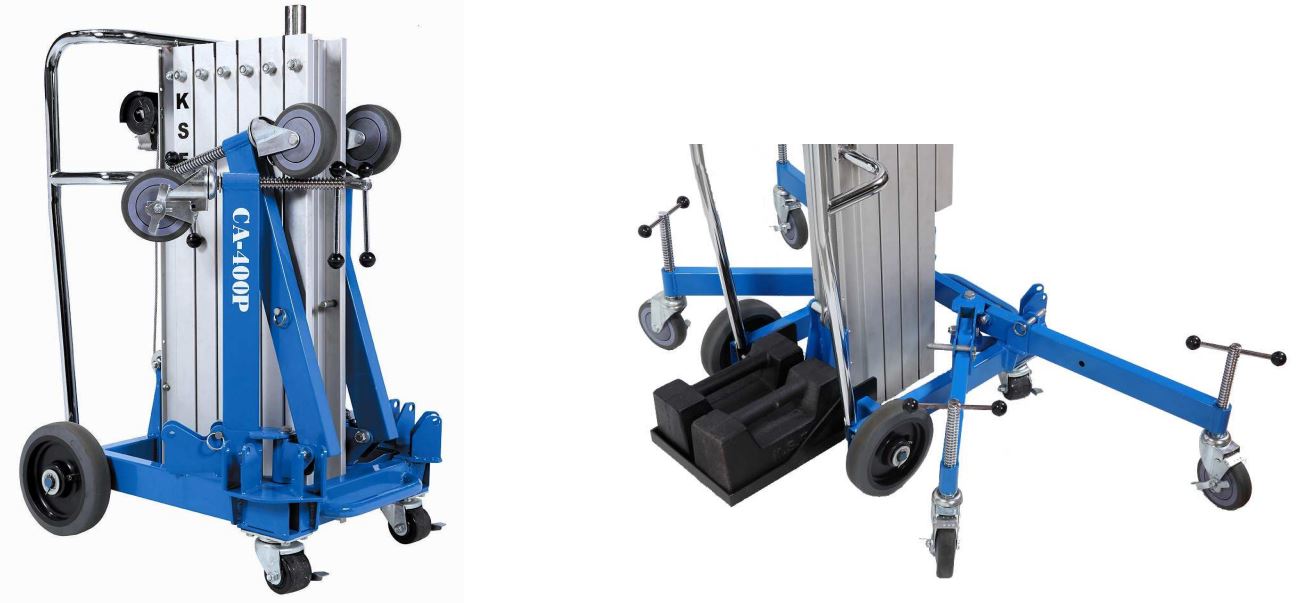

- Tool-free folding setup lets the legs deploy or fold quickly, with transport wheels and handle for easier movement and storage.
Specifications for KSF CA400-P Electric Portable Platform Lifter:
| Specification | Details |
| Model: |
CA400-P |
| Load Capacity: |
150kg |
| Basic Height: |
990mm |
| Maximum Lifting Height: |
4000mm |
| Closed Dimensions: |
550 x 650mm |
| Platform Dimensions: |
440 x 750mm |
| Platform Weight: |
5.3kg |
| Unit Weight: |
66kg |
| Frame Material: |
Heat-treated aluminium |
| Levelling: |
Dual built-in spirit levels with four adjustable legs |
| Safety: |
Automatic slipping clutch and emergency stop |
| Transport: |
Folding legs, transport wheels and handle |
This portable material lifter is suited to installing air-conditioning units, awnings, garage doors and other equipment where loads need to be raised accurately to height in confined or uneven work areas.
