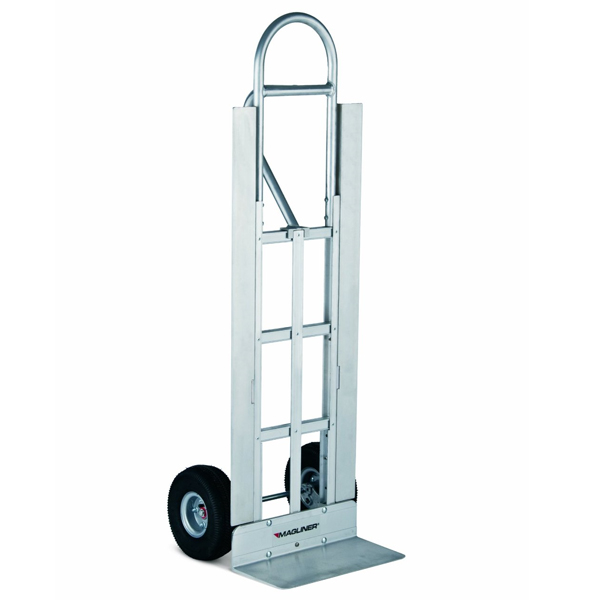

Magliner Straight Back Aluminium Hand Truck is a lightweight 225kg delivery trolley with puncture-resistant microcellular foam wheels and a 455 x 190mm die-cast aluminium nose plate for general commercial handling.
Features of Magliner Straight Back Aluminium Hand Truck:
- Aluminium channel frame construction provides a rigid, lightweight hand truck with a high strength-to-weight ratio.

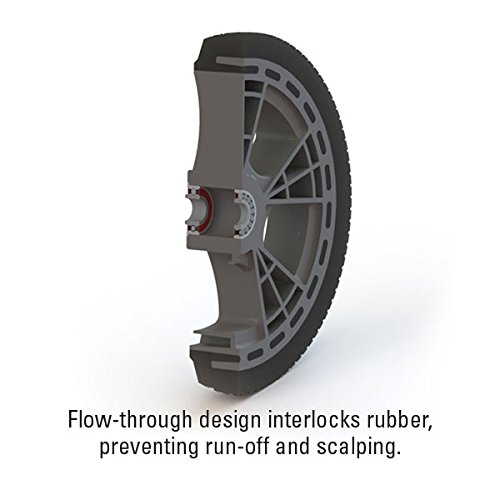

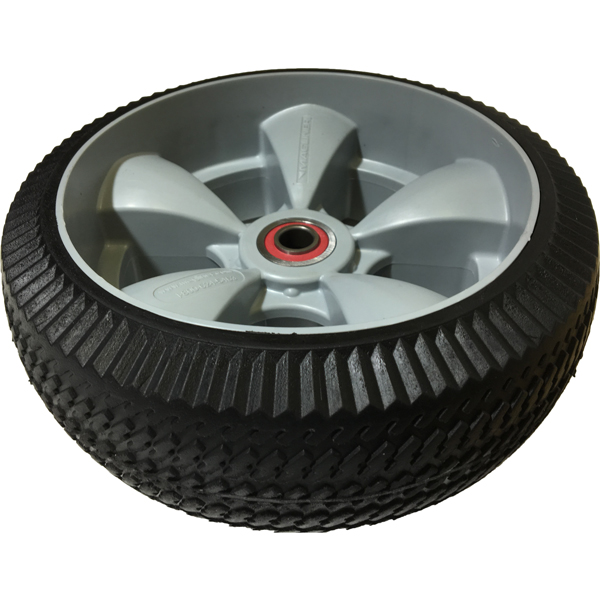

- Microcellular foam wheels are puncture resistant and use offset hubs for increased clearance between the wheels and hand truck.
- One-piece HDPE wheel hubs resist chemicals, weather exposure and side impact.
- Semi-precision bearings support smooth wheel operation during everyday delivery and material handling.

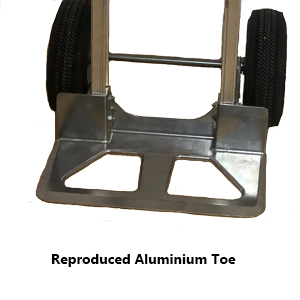

- Die-cast aluminium nose plate is lightweight, durable and suitable for cold-weather and freezer applications.

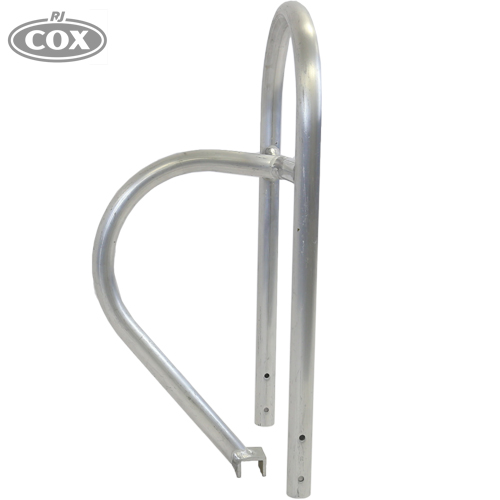

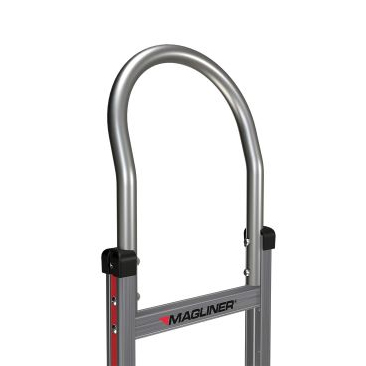

- Multiple handle configurations allow the modular Magliner hand truck to be configured for different handling requirements.
- Made in the USA with genuine Magliner and reproduced nose plate configurations available.
Specifications for Magliner Straight Back Aluminium Hand Truck:
| Specification | Details |
|---|
| Capacity: |
225kg |
| Frame: |
39in straight-back aluminium frame with 1-1/4in straight cross-braces |
| Wheel Size: |
10.5 x 3.5in |
| Wheel Type: |
Puncture-resistant microcellular foam with offset hub |
| Wheel Hub: |
One-piece HDPE |
| Bearings: |
Semi-precision |
| Nose Plate Size: |
18 x 7.5in / 455 x 190mm |
| Nose Plate Options: |
UA Genuine Magliner die-cast aluminium or UR reproduced die-cast aluminium |
| Country of Manufacture: |
USA |
Genuine Magliner UA Nose Plate Models:
| Order Code | Handle Type |
|---|
| 115AUA1080 |
52in Vertical Loop - No.15A |
| 111UA1080 |
Horizontal U Loop - No.11 |
| 118UA1080 |
Angled Loop Handle - No.18 |
| 115CUA1080 |
60in Vertical Loop - No.15C |
| 116UA1080 |
Bolted Double Pistol Grip - No.16 |
| 122UA1080 |
Standard U with Vinyl Sleeve - No.22 |
| 130UA1080 |
Welded Double Pistol Grip - No.30 |
Reproduced UR Nose Plate Models:
| Order Code | Handle Type |
|---|
| 115AUR1080 |
52in Vertical Loop - No.15A |
| 111UR1080 |
Horizontal U Loop - No.11 |
| 118UR1080 |
Angled Loop Handle - No.18 |
| 115CUR1080 |
60in Vertical Loop - No.15C |
| 116UR1080 |
Bolted Double Pistol Grip - No.16 |
| 122UR1080 |
Standard U with Vinyl Sleeve - No.22 |
| 130UR1080 |
Welded Double Pistol Grip - No.30 |
Optional Frame Extension:
| Order Code | Description |
|---|
| 40011 |
68in Hi-U Frame Extension for No.11, No.16 and No.22 handles |
This lightweight delivery hand truck suits warehouses, couriers, stockrooms, retail deliveries and general commercial material handling. Its puncture-resistant foam wheels and modular handle options allow the trolley to be configured for different delivery and handling tasks.
