Magliner STRAIGHT Back 18" Extruded Nose Microcellular Wheels Hand Truck

Price: AUD $819.50 (Ex GST AUD $745.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

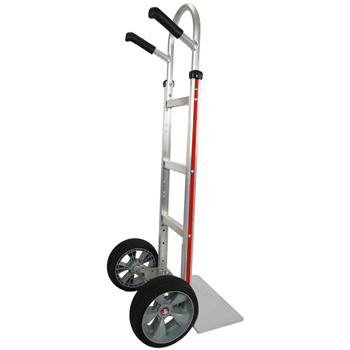

Magliner Straight Back Hand Truck is a lightweight 225kg aluminium hand trolley with a 455 x 190mm extruded nose plate and microcellular foam wheels for commercial material handling.

Features of Magliner Straight Back Hand Truck:

High-strength aluminium construction uses 6000 series alloy for a rigid frame with a high strength-to-weight ratio.

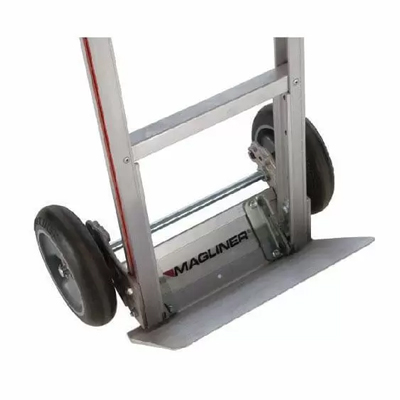

Extruded aluminium nose plate has a tapered profile and leading edge for easier positioning under loads.

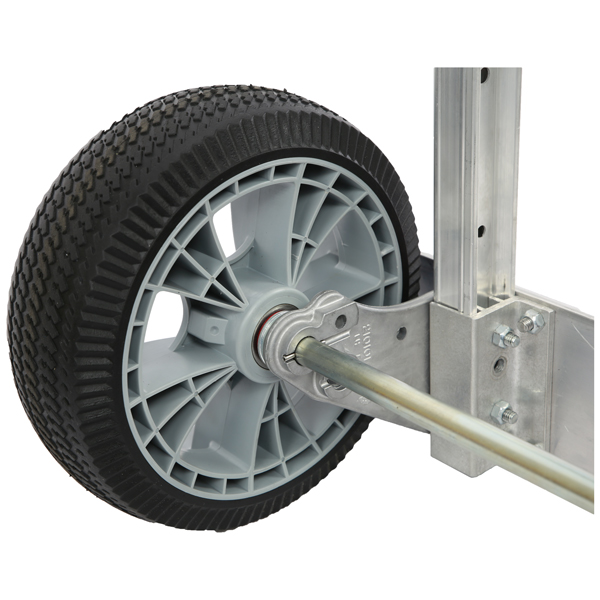

Microcellular foam wheels use an offset hub to provide additional clearance between the wheels and hand truck.
One-piece HDPE wheel hubs resist chemicals, weather exposure and side impact.
Semi-precision wheel bearings support smooth rolling during everyday handling.

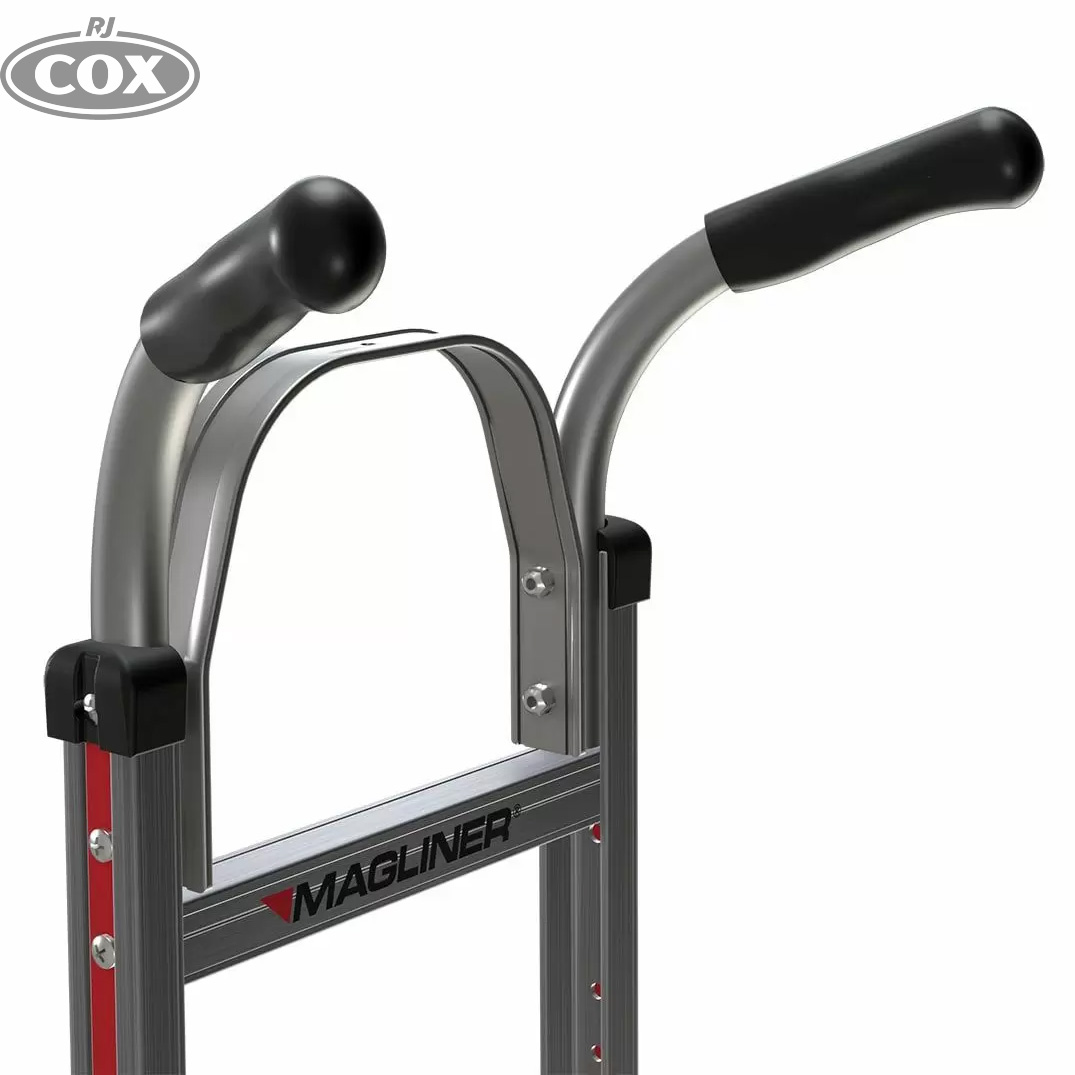

Multiple handle configurations allow the hand truck to be selected to suit different handling preferences.
Modular Magliner design allows alternative configurations to be quoted where the required trolley is not listed.

Specifications for Magliner Straight Back Hand Truck:

Specification	Details
Capacity:	225kg
Frame:	39in straight-back aluminium frame with 1-1/4in cross-braces
Nose Plate:	G1 extruded aluminium, 455 x 190mm, recessed mount
Wheel Type:	Microcellular foam with offset hub
Wheel Bearings:	Semi-precision
Wheel Hub:	One-piece HDPE
Country of Manufacture:	USA

Available Handle Configurations:

Order Code	Handle Type
111G11080	Standard U - No.11
115AG11080	52in Vertical Loop - No.15A
115CG11080	60in Vertical Loop - No.15C
116G11080	Pistol Grip - No.16
122G11080	Standard U with Vinyl Sleeve - No.22
130G11080	Welded Double Pistol Grip - No.30
118G11080	Angled Loop, adds 3in - No.18

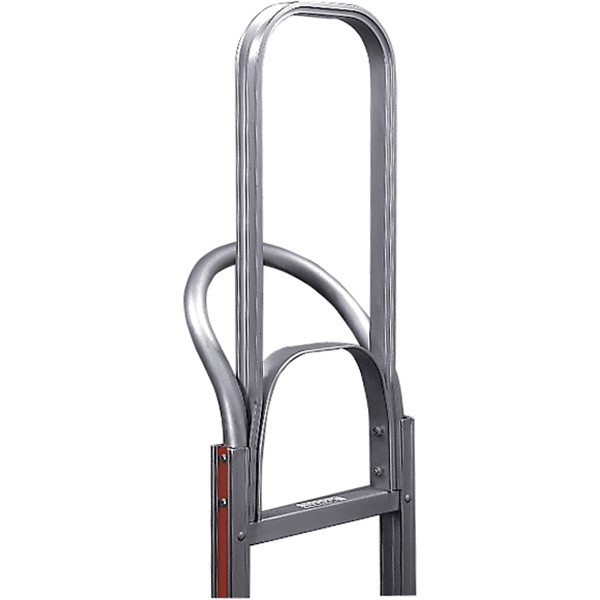

40011	Hi-U Frame Extension 68in - suits No.11, No.16 and No.22 handles

This aluminium hand truck suits warehouses, delivery operations, stockrooms and general commercial material handling where a lightweight 225kg trolley with a long extruded nose plate and multiple handle options is required.
