Magliner CURVED Back 18" Extruded Nose Pneumatic Wheels Hand Truck

Price: AUD $517.00 (Ex GST AUD $470.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

The Magliner Curved Back Aluminium Hand Truck is a lightweight 225kg delivery trolley with a rigid aluminium frame, 250mm pneumatic tyres and an 18" extruded aluminium G1 nose plate.

Features of Magliner Curved Back Aluminium Hand Truck:

Heavy-duty aluminium channel frame provides a rigid, lightweight structure with a high strength-to-weight ratio.
39" curved back frame uses 1-1/4" nylon cross-braces to support a wide range of delivery and materials handling loads.

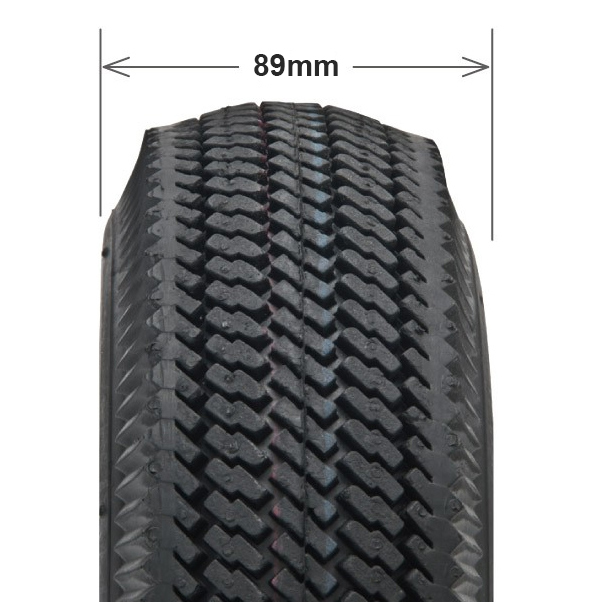

250mm pneumatic tyres feature heavy-duty 4-ply construction and semi-precision bearings for smooth movement over varied surfaces.
Three-piece offset wheel hubs provide added wheel clearance and allow easier tube replacement when required.
Extruded aluminium G1 nose plate features a recessed mounting design and generous 455 x 190mm loading surface.
Multiple handle configurations allow the modular Magliner hand truck to be configured for different handling preferences.

Specifications for Magliner Curved Back Aluminium Hand Truck:

Specification	Details
Load Capacity:	225kg
Frame Material:	Aluminium
Frame Style:	39" curved back
Cross-Braces:	1-1/4" nylon
Tyre Type:	Heavy-duty 4-ply pneumatic
Wheel Diameter:	250mm
Wheel Bearings:	Semi-precision
Nose Plate Type:	G1 extruded aluminium, recessed mount
Nose Plate Dimensions:	455 x 190mm (18 x 7-1/2")
Country of Manufacture:	USA

Handle Options for Magliner Curved Back Aluminium Hand Truck:

Order Code	Handle Type
511G11060	No.11 standard U loop
15AG11060	No.15A 52" vertical loop
515CG11060	No.15C 60" vertical loop
518G11060	No.18 angled loop, adds 3"
522G11060	No.22 standard U handle with vinyl sleeve and brace
530G11060	No.30 welded double pistol grip
516G11060	No.16 bolted pistol grip

Optional Frame Extension:

Item Code	Description
40011	68" Hi-U frame extension for use with No.11, No.16 and No.22 handles

Please note: Magliner hand trucks use a modular design. Contact the office for pricing on configurations not listed on the website.

Suitable for deliveries, warehouses, distribution centres and general materials handling, this Magliner curved-back hand trolley combines lightweight aluminium construction, pneumatic tyres and a large extruded nose plate for versatile load transport.
