Magliner CURVED Back 18" Die-Cast Aluminium Nose with Microcellular Wheels

Price: AUD $720.50 (Ex GST AUD $655.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

The Magliner Curved Back Aluminium Hand Truck is a lightweight 225kg delivery trolley with a rigid aluminium frame, puncture-resistant microcellular foam wheels and an 18" die-cast aluminium nose plate.

Features of Magliner Curved Back Aluminium Hand Truck:

Heavy-duty aluminium construction provides a rigid, lightweight frame with a high strength-to-weight ratio for commercial deliveries and materials handling.
39" curved back frame uses 1-1/4" curved nylon cross-braces to support a wide range of loads.

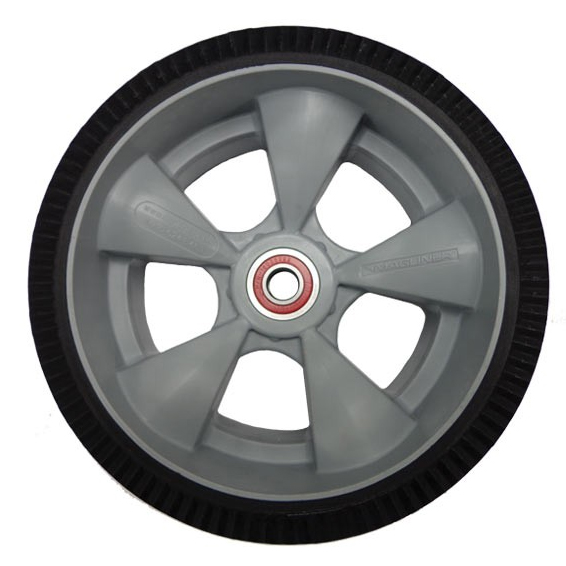

Puncture-resistant microcellular foam wheels provide reliable rolling without the risk of pneumatic tyre punctures.
Offset HDPE wheel hubs provide greater clearance between the wheels and frame while resisting chemicals, weather and side impact.
Semi-precision bearings support smooth wheel operation during regular transport tasks.
18" die-cast aluminium nose plate provides a lightweight and durable loading platform suitable for cold-weather and freezer applications.

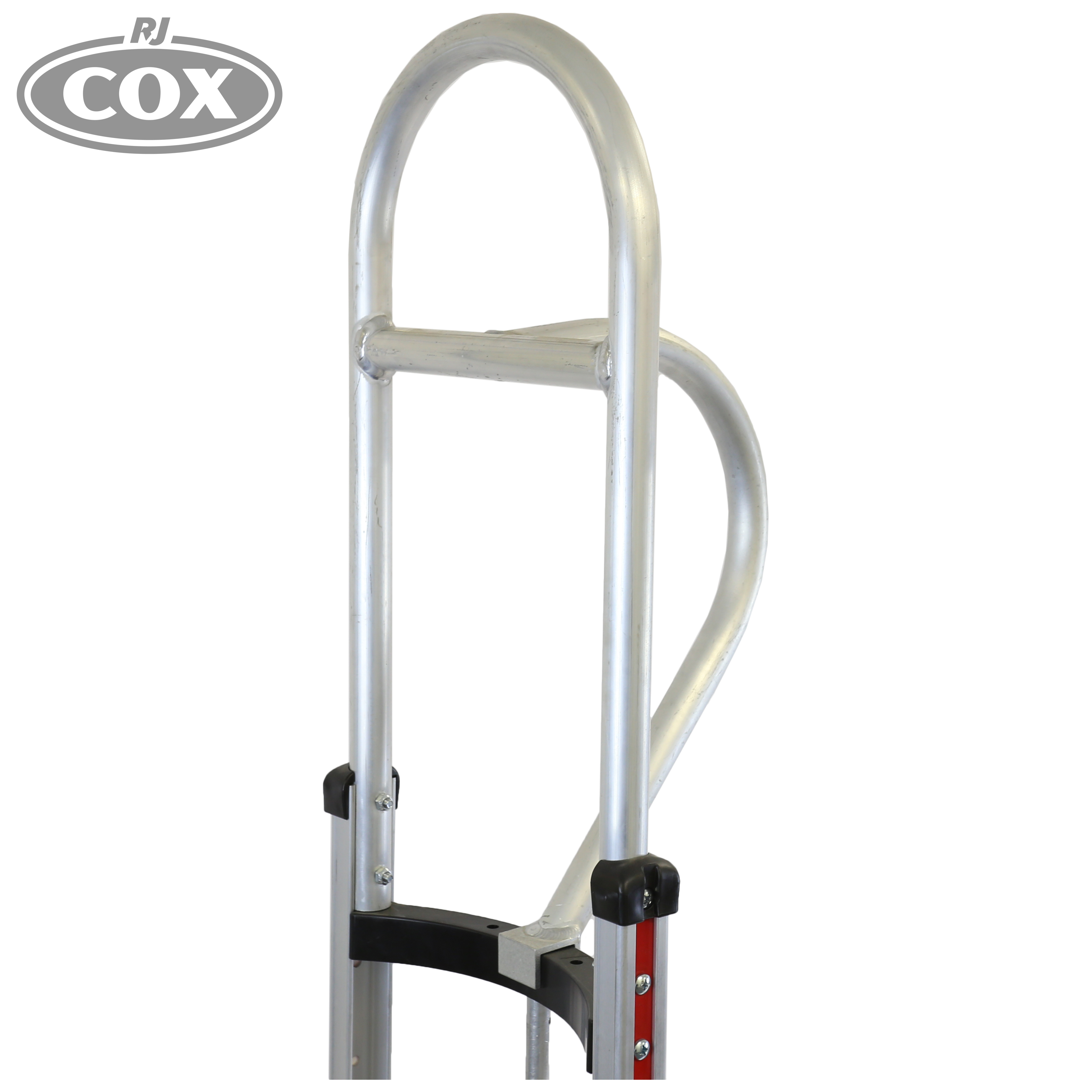

Multiple handle configurations allow the modular Magliner hand truck to be configured for different handling requirements.

Specifications for Magliner Curved Back Aluminium Hand Truck:

Specification	Details
Load Capacity:	225kg
Frame Material:	Aluminium
Frame Style:	39" curved back
Cross-Braces:	1-1/4" curved nylon
Wheel Type:	Microcellular foam, puncture-resistant
Wheel Size:	10.5 x 3.5"
Wheel Hub:	One-piece HDPE offset hub
Wheel Bearings:	Semi-precision
Nose Plate Size:	455 x 190mm (18 x 7.5")
Nose Plate Material:	Die-cast aluminium
Country of Manufacture:	USA

Genuine Magliner UA Nose Plate Models:

Order Code	Handle Type
530UA1080	No.30 welded double pistol grip

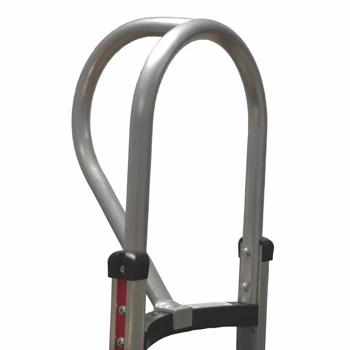

515AUA1080	No.15A 52" vertical loop
511UA1080	No.11 horizontal U loop
518UA1080	No.18 angled loop handle
515CUA1080	No.15C 60" vertical loop
516UA1080	No.16 bolted double pistol grip
522UA1080	No.22 standard U handle with vinyl sleeve

Reproduction UR Nose Plate Models:

Order Code	Handle Type
530UR1080	No.30 welded double pistol grip
515AUR1080	No.15A 52" vertical loop
511UR1080	No.11 horizontal U loop
518UR1080	No.18 angled loop handle
515CUR1080	No.15C 60" vertical loop
516UR1080	No.16 bolted double pistol grip
522UR1080	No.22 standard U handle with vinyl sleeve

Optional Frame Extension:

Item Code	Description
40011	68" Hi-U frame extension for use with No.11, No.16 and No.22 handles

Please note: Magliner hand trucks use a modular design. Contact the office for pricing on configurations not listed on the website.

Suitable for delivery, warehouse and distribution applications, this curved-back Magliner hand trolley combines lightweight aluminium construction, puncture-resistant wheels and a large die-cast nose plate for versatile load transport.
