Aluminium Height Bars - Suspended Vehicle Height Bar

Aluminium Height Bar suspended vehicle height restriction bar with hanger assemblies and chains.

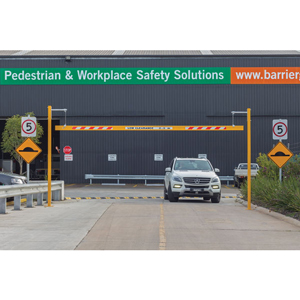

Height restriction bars prevent damage to oversized vehicles and the property by installing where vehicles first enter areas of restricted Height undercover or areas with overhead obstructions.

Features of Group 1: Cantilever Hanger Aluminium Height Restriction Bars

• Choose from 2 to 6 metre lengths with custom lengths available and made to order
• Use in locations where vehicles first enter an undercover area or encounter an overhead obstruction, where the clearance in either case is
•   i)  3 metres or less if only cars or light vans are likely to enter the facility or
•   ii) 4.6 metres in all other areas.
• Supplied with hanger assemblies and chains

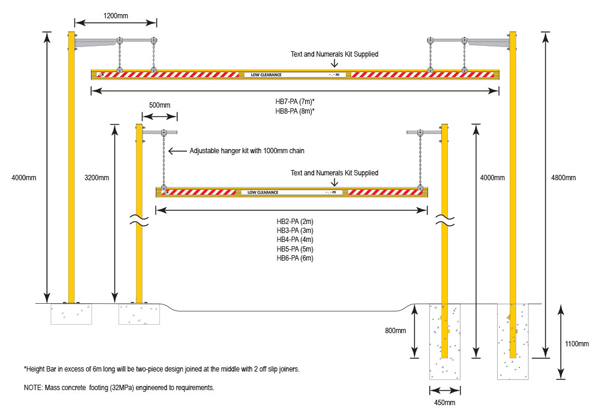

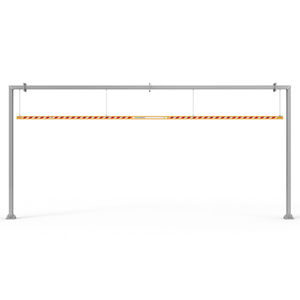

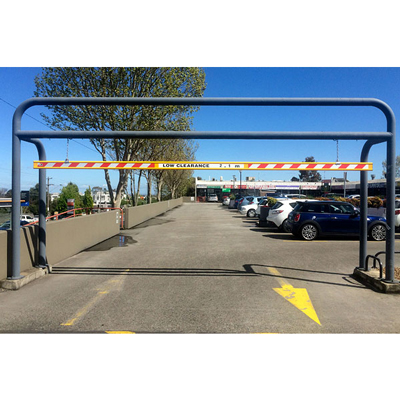

• Freestanding posts are available if there is no existing support structure.
• Optional adjustable offset brackets are available.
• Custom lengths made to order

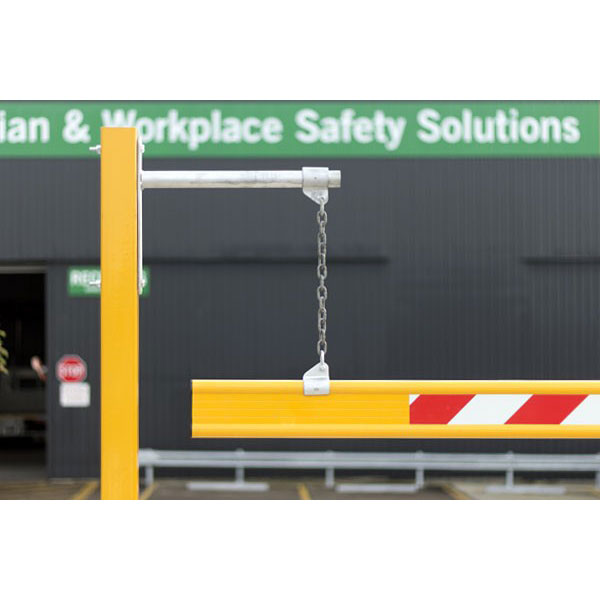

• NB: When using Cantilever Hanger:
•    Maximum Clearance 2600mm
• Powder-coated yellow with a reflective face
• "LOW CLEARANCE" text and specified height in Black lettering on a White background
• Upon receipt of Emailed Order Confirmation, please specify the following by return email, e.g., "LOW CLEARANCE -.- __ m")
• Bottom of the Height Clearance Bar to the surface of the road
• Complies to AS2890.1

*Posts & Reo Cage pricing is for 1 unit each. Also, if you require the Adjustable Height Bar Standoff Bracket for each post, again, pricing is for 1 unit only.*

Order Codes

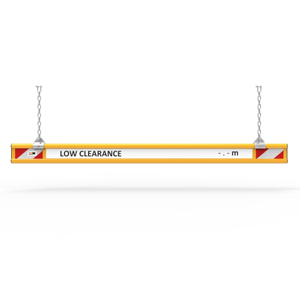

HB2-PA      2 metre bar with text and hanger kit

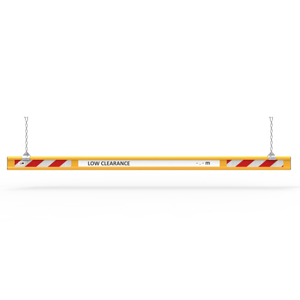

HB3-PA      3 metre bar with text and hanger kit

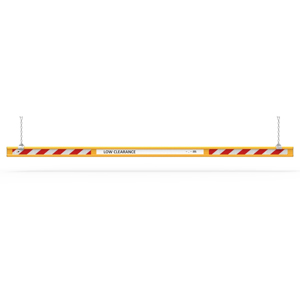

HB4-PA      4 metre bar with text and hanger kit

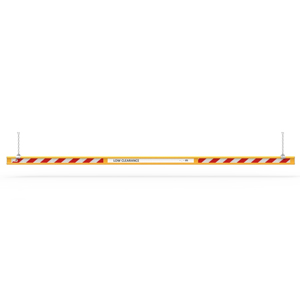

HB5-PA      5 metre bar with text and hanger kit

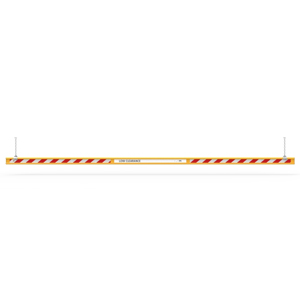

HB6-PA      6 metre bar with text and hanger kit

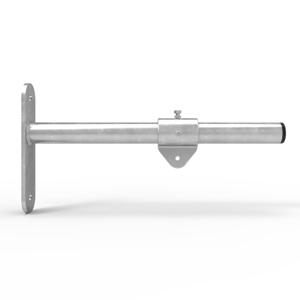

HBS500 Adjustable height bar stand-off bracket (Each) 500mm (sold separately)
HBPSM1    Surface mount post 90mm x 4mm - 3.2 metres high (Each) (sold separately)
RC250      In-ground Reo Cage M16 x 250 x 1000mm (Each) (sold separately)

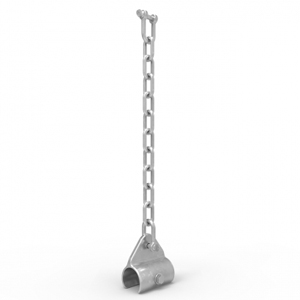

KIT22         Additional Hanger Kit (Chain and Clips)

Specifications of Aluminium Height Restriction Bar
Material  145mm x 40mm extruded aluminium
Finish     Yellow powder coat Bar
               Galvanised steel chain
Length    2, 3, 4, 5 or 6 metres or custom lengths
Weight    2 metre with hangers - 6.4kg
                3 metre with hangers - 9kg
                4 metre with hangers - 11.5kg
                5 metre with hangers - 14.2kg
                6 metre with hangers - 16.7kg

NOTE: Please specify the required clearance when ordering the height bar.
This will be the distance from the bottom of the height bar to the road surface.
