Hammer Lock Floor Lock - Lift Up 900-2 / 900-4

Hammer Lock Lift-Up Floor Locks 900-2 / 900-4 secure warehouse trolleys, workbenches, stock trolleys and displays fitted with two fixed and two swivel castors, helping prevent unwanted movement with a simple pedal-operated locking action.

Features of Hammer Lock Lift-Up Floor Locks:

• Single-lock operation is all that is required to immobilise a trolley or other suitable wheeled equipment.
• Designed for two fixed and two swivel castors to provide a reliable locking solution for warehouse trolleys, workbenches, stock trolleys and displays.
• Positioned between the swivel castors at the push end of the trolley, a single floor lock lifts that end off the ground to immobilise the trolley.
• Pedal-on / pedal-off mechanism provides simple, trouble-free operation.
• Rubber locking pad contacts the floor to help prevent movement of the trolley.
• Stable trolley support is achieved when the front end of the trolley is fitted with fixed castors.
• Inner release pedal retracts the floor lock when pushed down.
• Correct mounting support is essential, and the mounting point must be adequately supported.
• Simple maintenance requires a drop of oil on the joints every 6 months to help ensure smooth performance.
• Made in Japan for the supplied 900-series Hammer Lock floor locks.
• Lock capacity varies by model and is shown in the capacity chart below.

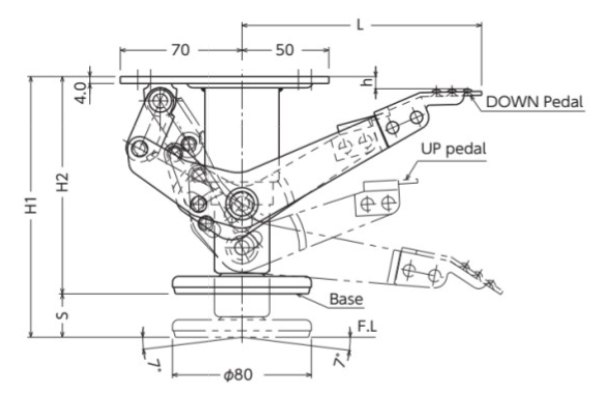

Specifications for Hammer Lock Lift-Up Floor Locks:

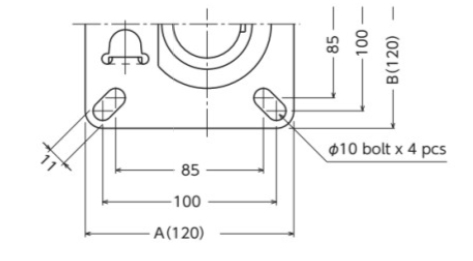

Important Mounting Note: It is essential to mount the floor lock at a height that provides 8mm of lift. More lift can make the trolley unstable, while insufficient lift may prevent the trolley from locking adequately. Ensure the mounting point is adequately supported.

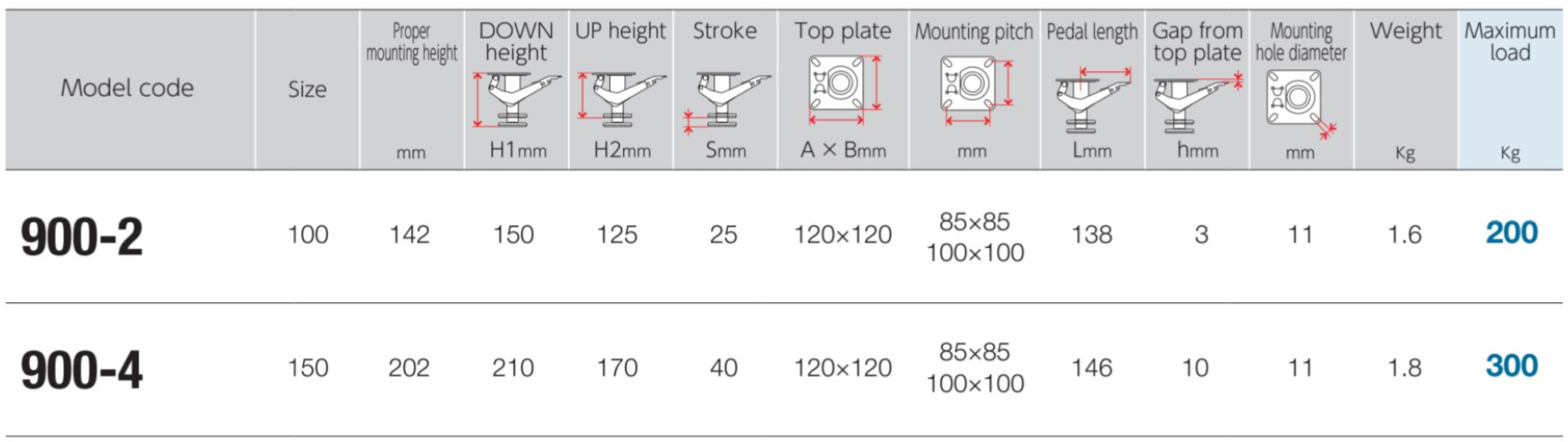

Model Capacity and Selection Chart:

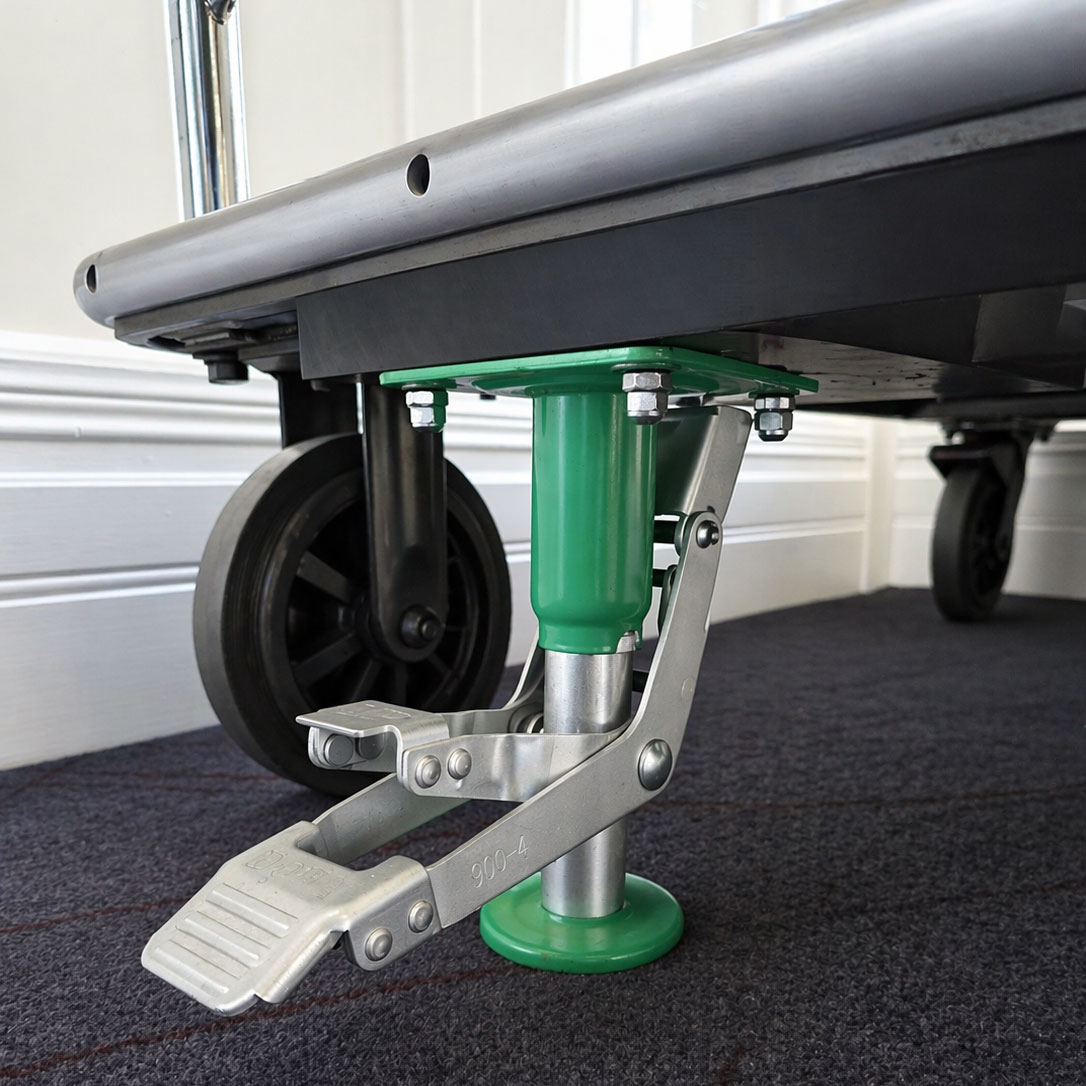

360-Degree Product View:

These lift-up floor locks are suited to warehouse trolleys, stock trolleys, mobile workbenches, displays and other compatible wheeled equipment that needs to be held securely in position. They may also be described as trolley floor locks, castor brakes, trolley stabilisers or pedal-operated floor stops.
