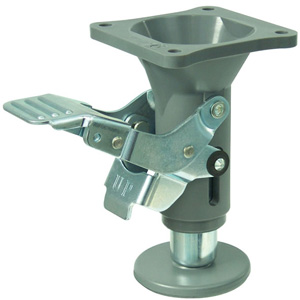

Hammer Lock Friction Pad Floor Locks 909-125 909-150

Hammerlock Friction Pad Style Floor Lock is designed for heavier trolley loads and maximum stability, using a spring-loaded rubber pad to hold the trolley stationary while the castors continue supporting the load.

Features of Hammerlock Friction Pad Style Floor Lock:

• Heavy-load and high-stability design makes the friction pad style an alternative to the Lift-Up Style Floor Lock where heavier loads or maximum trolley stability are required.
• Spring-loaded rubber pad presses against the floor and creates compression to prevent trolley movement without lifting the trolley.
• Castors continue supporting the load in their normal operating position while the friction pad provides the locking force.
• Simple pedal-on, pedal-off operation provides straightforward engagement and release of the floor lock.
• Approximately 40kg of locking force is applied to the 80mm diameter base when the pad is compressed by 5mm, which is stated to be sufficient for locking most trolleys.
• Second Hammerlock option allows another floor lock to be mounted at the opposite end of the trolley if one lock does not provide sufficient holding force.
• Industrial-strength castors are assumed when applying the stated load capacities.
• Suitable for trolleys requiring a friction-style floor locking system.

Important: This floor lock is not to be used on workbenches, ladders or sloped floors.

Specifications for Hammerlock Friction Pad Style Floor Lock:

Hammerlock Friction Pad Floor Lock Models:

*The metric and imperial unit-weight figures above have been retained exactly as supplied. The source data appears to contain inconsistencies between the kg and lb values, so these should be confirmed before publication if required.

360-Degree Product View:

The Hammerlock friction pad floor lock is suited to trolleys carrying heavier loads or requiring maximum stability while stationary. Unlike a lift-up floor lock, it keeps the castors supporting the load and uses friction against the floor to act as a trolley brake, floor stop or trolley stabiliser.
