Fallshaw M Series Medium Duty 100kg capacity Castors - 125mm dia Blue Hi-Res Rubber Wheels with Threadguard
This castor model features a 125mm wheel with a blue Hi-Res rubber tread.
The Core M Series castors are designed to balance load capacity, maneuverability, and floor protection. They are commonly used in various applications, including industrial environments, warehousing, healthcare facilities, and institutional settings.
The 125mm wheel size refers to the diameter of the wheel. This size is suitable for medium-duty applications and offers a good compromise between load-bearing capacity and maneuverability.
The blue Hi-Res rubber wheel tread is designed to provide excellent grip and traction while minimizing noise and floor damage. This type of rubber compound is often chosen for its non-marking properties, ensuring it leaves minimal or no marks on the floor surface.
Features of Fallshaw Core M Series Castor - 125mm:

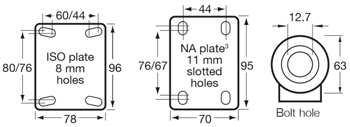

Also available with a North American (NA) base plate upon request.
Specifications of CBQ125G Wheels with Threadguard
Diameter: | 125mm |
Tread: | 33mm |
Hub: | 40mm |
Bore: | 8mm |
Bearing: | Precision Ball Bearing |
Material: | Blue High Resilience Rubber |
Specifications for CBQ125G 125mm dia Castors
Castor Code | Description |
Wheel Diameter (mm) |
Max Load (kg) | Mount Height (mm) | Turning Radius (mm) |
CBQ125 | 125mm dia Wheel | 125 | 100 | 161 | - |

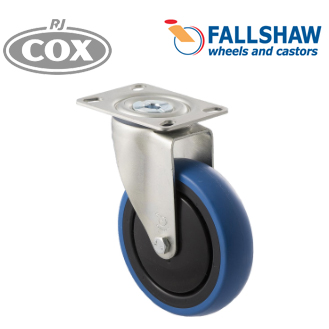

CBQ125G/MZP | Swivel Plate | 103 | |||
CBQ12G/MZPTB | Swivel Plate Total Brake | 128 | |||

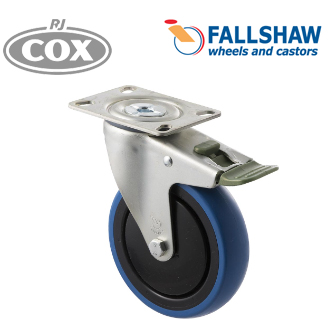

CBQ125G/MZPDL | Swivel Plate Direction Lock | 128 | |||

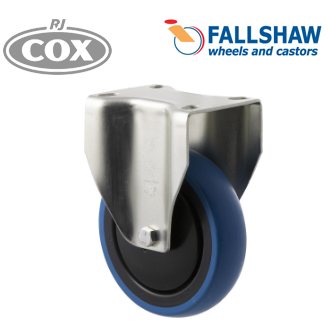

CBQ125G/MZF | Fixed Plate | - | |||

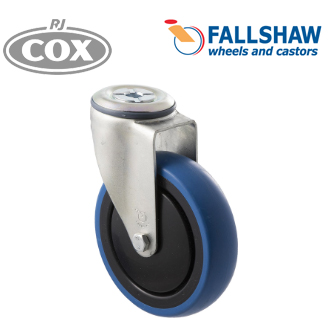

CBQ125G/MZH | Bolt Hole | 103 | |||

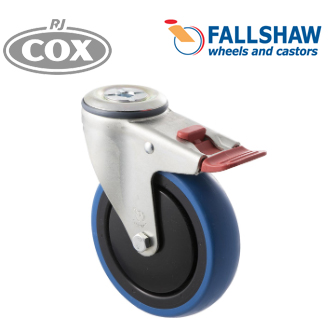

CBQ125G/MZHTB | Bolt Hole & Total Brake | 128 | |||

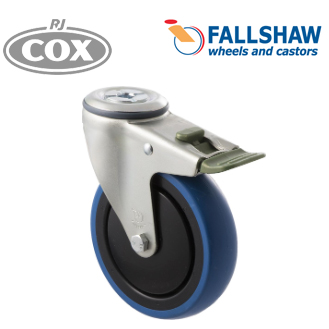

CBQ125G/MZHDL | Bolt Hole & Direction Lock | 128 |
