Fallshaw M Series MNN125 Castors feature 125mm black hard nylon wheels with a 150kg load rating, providing a durable rolling solution for industrial trolleys, carts and mobile equipment.
| Specification | Details |
|---|---|
| Wheel Diameter: | 125mm |
| Tread: | 32mm |
| Hub: | 40mm |
| Bore: | 12mm (no bush) |
| Bush: | 8mm |
| Bearing: | Plain bearing |
| Wheel Material: | Hard nylon (black) |
| Maximum Load: | 150kg |
| Mount Height: | 161mm |
| Castor Code | Description | Turning Radius |
|---|---|---|

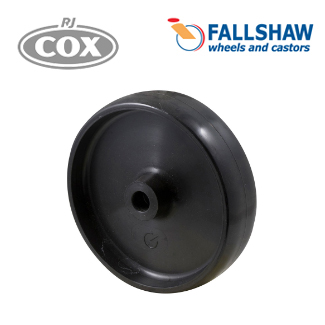

| MNN125 | 125mm dia Wheel | - |

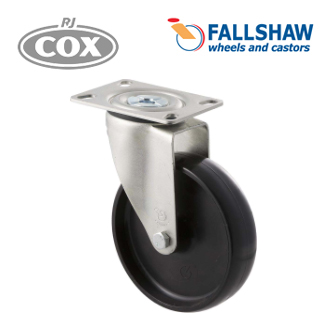

| MNN125/MZP | Swivel Plate | 103mm |

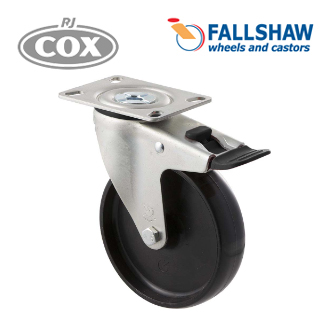

| MNN125/MZPTB | Swivel Plate Total Brake | 128mm |

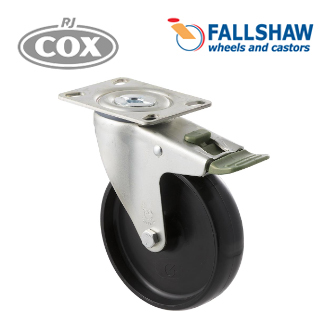

| MNN125/MZPDL | Swivel Plate Direction Lock | 128mm |

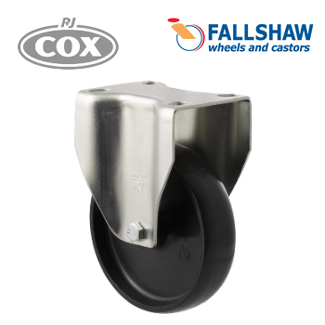

| MNN125/MZF | Fixed Plate | - |

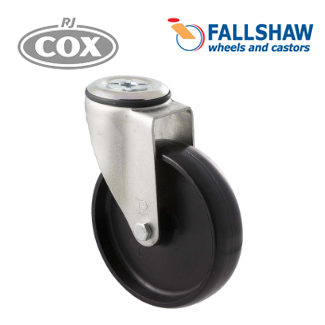

| MNN125/MZH | Bolt Hole | 103mm |
| MNN125/MZHTB | Bolt Hole Total Brake | 128mm |

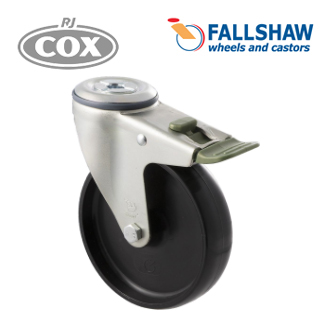

| MNN125/MZHDL | Bolt Hole Direction Lock | 128mm |
Fallshaw MNN125 nylon castor wheels are suited to industrial trolleys, carts, mobile racks and material handling equipment.
The range offers fixed and swivel castor configurations plus brake and direction lock options for different handling requirements.
