Fallshaw M Series STQ75G Castors feature 75mm grey energy-absorbent rubber wheels with threadguards and a 100kg load rating for medium-duty trolley and equipment applications.
| Specification | Details |
|---|---|
| Diameter: | 75mm |
| Tread: | 32mm |
| Hub: | 40mm |
| Bore: | 8mm |
| Bearing: | Precision ball bearing |
| Material: | Grey rubber |
| Castor Code | Description | Wheel Diameter | Max Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|

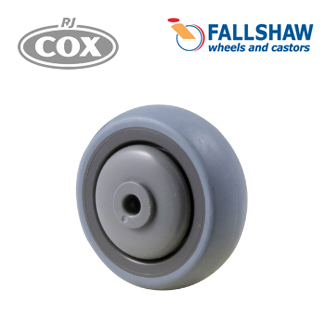

| STQ75G | 75mm dia Wheel | 75mm | 100kg | 106mm | - |

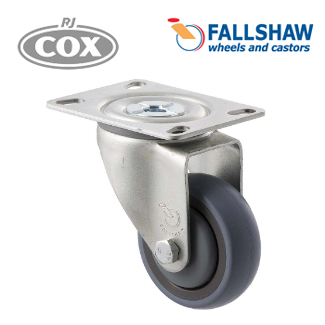

| STQ75G/MZP | Swivel Plate | 71mm | |||

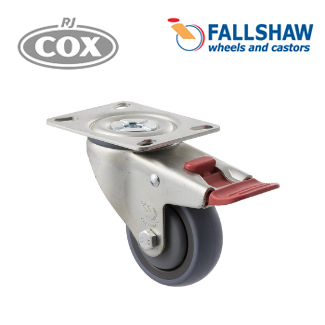

| STQ75G/MZPTB | Swivel Plate Total Brake | 118mm | |||

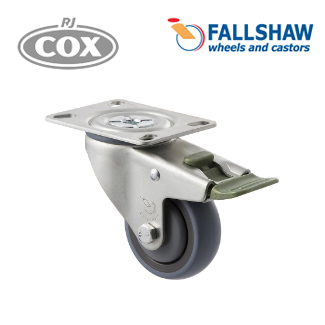

| STQ75G/MZPDL | Swivel Plate Direction Lock | 118mm | |||
| STQ75G/MZF | Fixed Plate | - | |||

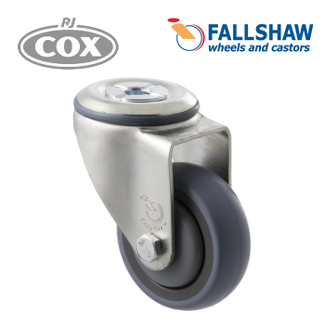

| STQ75G/MZH | Bolt Hole | 71mm | |||

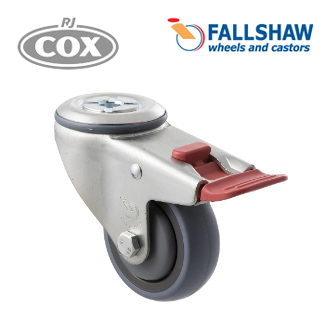

| STQ75G/MZHTB | Bolt Hole Total Brake | 118mm | |||
| STQ75G/MZHDL | Bolt Hole Direction Lock | 118mm |
Note: The supplied heading for the second table refers to CBQ75G, but the listed castor codes are STQ75G. STQ75G has been retained to match the actual model data.
