Fallshaw M Series STQ125G Castors feature 125mm grey energy-absorbent rubber wheels with Threadguard and a 100kg load rating, suited to medium-duty trolleys and mobile equipment.
| Specification | Details |
|---|---|
| Wheel Diameter: | 125mm |
| Tread: | 32mm |
| Hub: | 40mm |
| Bore: | 8mm |
| Bearing: | Precision ball bearing |
| Wheel Material: | Grey rubber |
| Castor Code | Description | Wheel Diameter | Max Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|

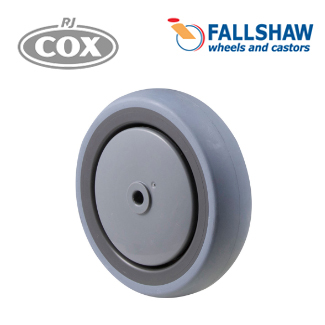

| STQ125G | 125mm dia Wheel | 125mm | 100kg | 161mm | - |

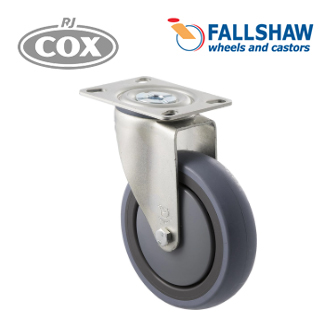

| STQ125G/MZP | Swivel Plate | 103mm | |||
| STQ125G/MZPTB | Swivel Plate Total Brake | 128mm | |||
| STQ125G/MZPDL | Swivel Plate Direction Lock | 128mm | |||
| STQ125G/MZF | Fixed Plate | - | |||

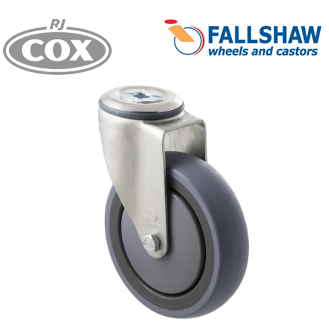

| STQ125G/MZH | Bolt Hole | 103mm | |||

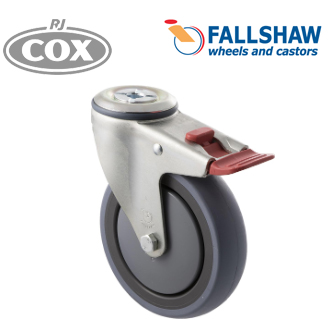

| STQ125G/MZHTB | Bolt Hole & Total Brake | 128mm | |||

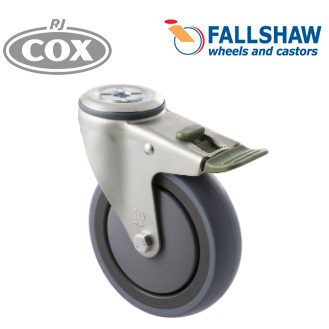

| STQ125G/MZHDL | Bolt Hole & Direction Lock | 128mm |
The STQ125G range suits medium-duty carts, trolleys and mobile equipment requiring a 125mm grey rubber wheel with Threadguard, with fixed, swivel, brake and direction lock configurations available.
