Fallshaw M Series Medium Duty 100kg capacity Castors - 100mm dia Blue Hi-Res Rubber Wheels with Threadguard
Also available with a North American (NA) base plate upon request.

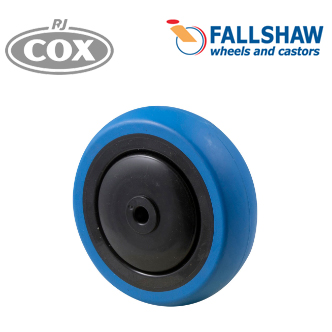

Specifications of CBQ100G Wheels with Threadguard:
Diameter: | 100mm |
Tread: | 33mm |
Hub: | 40mm |
Bore: | 8mm |
Bearing: | Precision Ball Bearing |
Material: | Blue High Resilience Rubber |
Specifications for CBQ100G 100mm dia Castors:
Castor Code | Description |
Wheel Diameter (mm) |
Max Load (kg) | Mount Height (mm) | Turning Radius (mm) |
CBQ100 | 100mm dia Wheel | 100 | 100 | 135 | - |

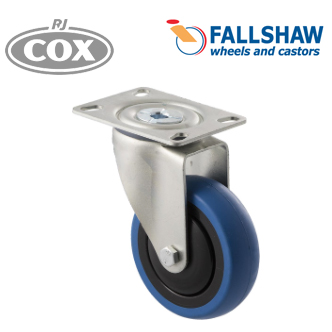

CBQ100G/MZP | Swivel Plate | 91 | |||

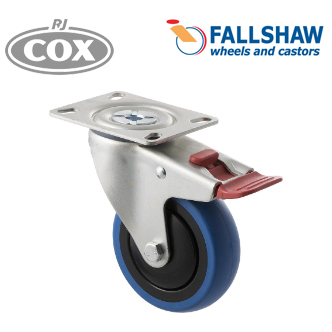

CBQ100G/MZPTB | Swivel Plate Total Brake | 128 | |||

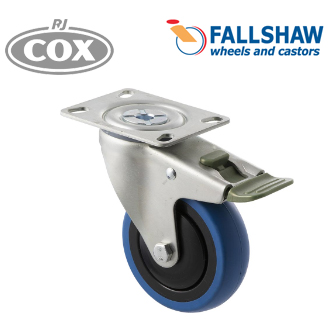

CBQ100G/MZPDL | Swivel Plate Direction Lock | 128 | |||

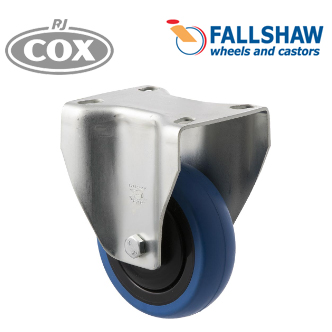

CBQ100G/MZF | Fixed Plate | - | |||
CBQ100G/MZH | Bolt Hole | 91 | |||

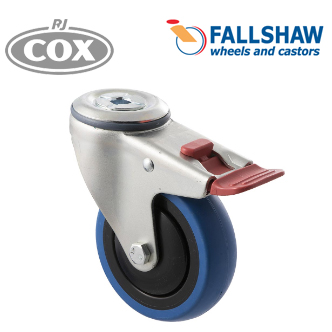

CBQ100G/MZHTB | Bolt Hole & Total Brake | 128 | |||

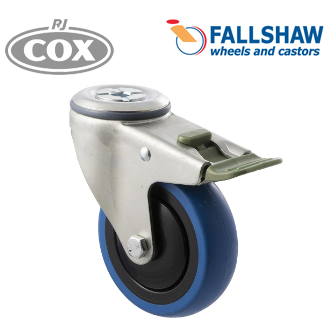

CBQ100G/MZHDL | Bolt Hole & Direction Lock | 128 |
