Fallshaw M Series Medium Duty 150kg capacity Castors - 75mm Black Nylon Wheels
Also available with North-American (NA) base plate upon request.
Specifications of MNN75 Wheels
Diameter: | 75mm |
Tread: | 32mm |
Hub: | 40mm |
Bore: | 12mm (no bush) |
Bush: | 8mm |
Bearing: | Plain Bearing |
Material: | Hard Nylon (Black) |
Specifications of MNN75 Castors 75mm dia Wheels
Castor Code | Description |
Wheel Diameter (mm) |
Max Load (kg) | Mount Height (mm) | Turning Radius (mm) |
MNN75 | 75mm dia Wheel | 75 | 150 | 106 | - |

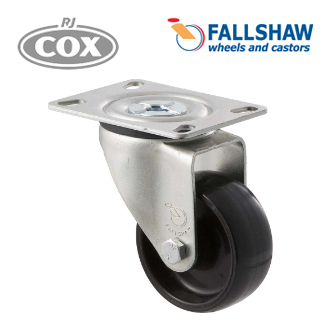

MNN75/MZP | Swivel Plate | 71 | |||

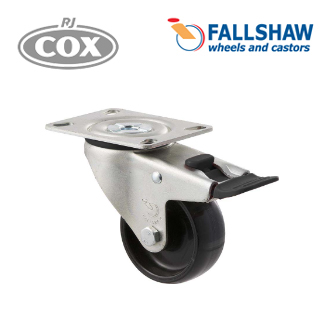

MNN75/MZPTB | Swivel Plate Total Brake | 118 | |||

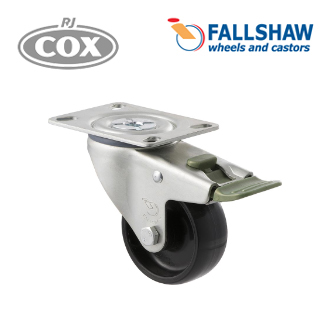

MNN75/MZPDL | Swivel Plate Direction Lock | 118 | |||

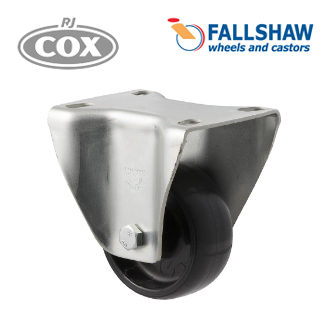

MNN75/MZF | Fixed Plate | - | |||

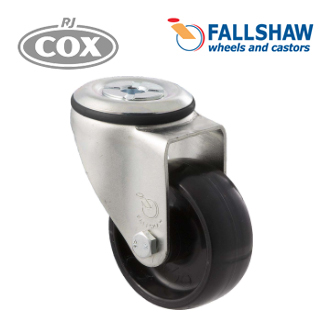

MNN75/MZH | Bolt Hole | 71 | |||

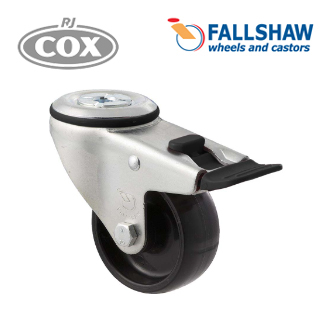

MNN75/MZHTB | Bolt Hole Total Brake | 118 | |||

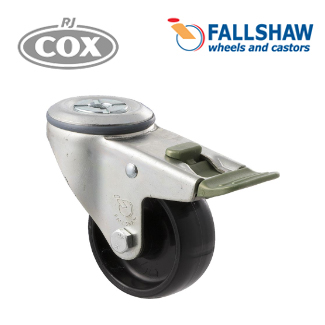

MNN75/MZHDL | Bolt Hole Direction Lock | 118 |
