Fallshaw M Series Medium Duty Castors - 100kg Capacity, 100mm Grey Rubber Wheels with Threadguards.
If needed, we can provide the option of a North American (NA) base plate upon request.

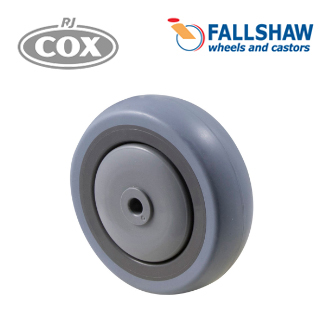

Specifications of STQ100G Wheels with Threadguard:
| Diameter: | 100mm |
| Tread: | 32mm |
| Hub: | 40mm |
| Bore: | 8mm |
| Bearing: | Precision Ball Bearing |
| Material: | Grey Rubber |
Specifications of CBQ75G Castors 100mm dia Wheels with Threadguard:
| Castor Code | Description |
Wheel Diameter (mm) |
Max Load (kg) | Mount Height (mm) | Turning Radius (mm) |
| STQ100G | 100mm dia Wheel | 100 | 100 | 135 | - |
| STQ100G/MZP | Swivel Plate | 91 | |||

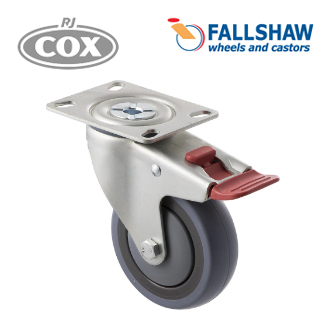

| STQ100G/MZPTB | Swivel Plate Total Brake | 128 | |||

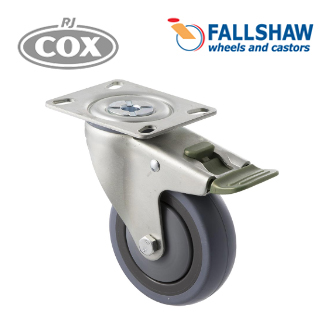

| STQ100G/MZPDL | Swivel Plate Direction Lock | 128 | |||

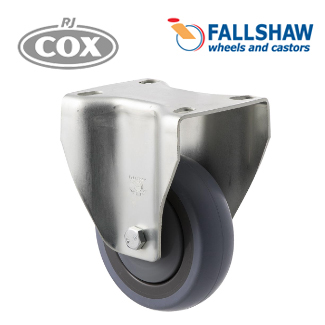

| STQ100G/MZF | Fixed Plate | - | |||

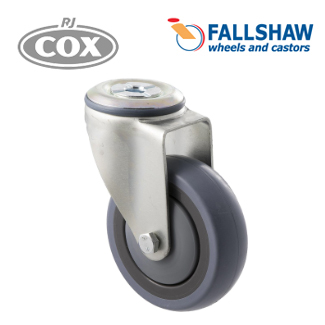

| STQ100G/MZH | Bolt Hole | 91 | |||

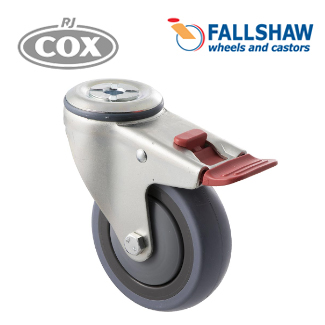

| STQ100G/MZHTB | Bolt Hole & Total Brake | 128 | |||

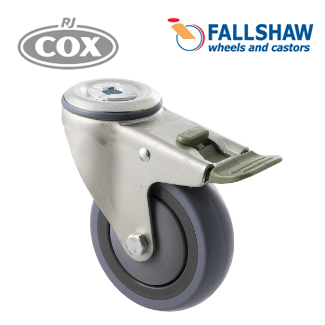

| STQ100G/MZHDL | Bolt Hole & Direction Lock | 128 |
