The Fallshaw M-Series 125mm Stainless Steel Castor combines a polyurethane-on-polypropylene wheel with 304 stainless steel components and Threadguard protection for medium-duty commercial and industrial trolley applications.

Features of Fallshaw M-Series 125mm Stainless Steel Castor QUC125G:

Polyurethane-on-polypropylene wheel provides durable rolling performance for medium-duty trolleys, carts and mobile equipment.
304 stainless steel fork construction provides strong corrosion resistance for demanding commercial and industrial environments.
Stainless steel precision bearing supports smooth and reliable wheel movement during regular use.
Threadguard protection helps reduce the risk of threads and debris becoming caught around the wheel and axle area.
Stainless steel component construction includes type 304 fork, ball bearings, axle, bolt and nut, with type 303 rivet and axle bush.
Chicago screw axle is supplied as standard in type 304 stainless steel, with optional nut-and-bolt or stainless steel Chicago screw configurations available.
Australian-made construction provides a durable castor solution manufactured by Fallshaw.

Fallshaw M-Series stainless steel castor base plate dimensions

Specifications for Fallshaw M-Series 125mm Stainless Steel Castor QUC125G:

Specification	Details
Brand:	Fallshaw
Item Code:	QUC125G
Wheel Diameter:	125mm
Tread Width:	32mm
Hub:	40mm
Bore:	8mm
Wheel Material:	Polyurethane on polypropylene
Bearing:	Stainless steel precision bearing
Fork Material:	304 stainless steel
Maximum Load:	200kg
Mount Height:	161mm
Threadguard:	Supplied
Country of Manufacture:	Australia

Available Fallshaw M-Series 125mm Castor Models:

Castor Code	Description	Wheel Diameter	Max Load	Mount Height	Turning Radius

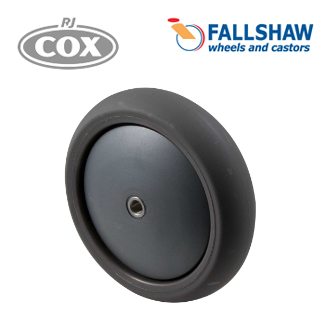

QUC125G	125mm diameter wheel	125mm	200kg	161mm	-

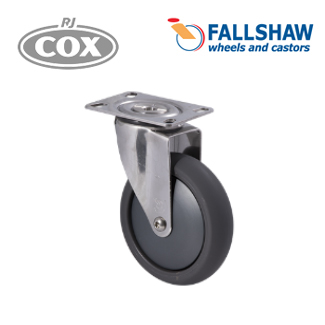

QUC125G/MSP	Swivel plate	125mm	200kg	161mm	103mm

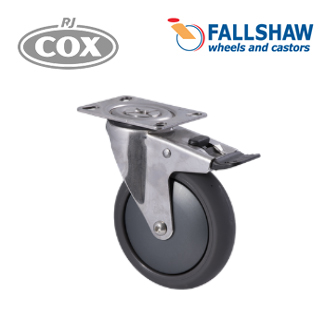

QUC125G/MSPTB	Swivel plate total brake	125mm	200kg	161mm	128mm

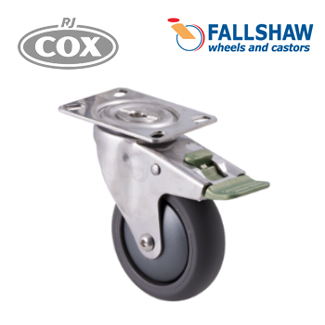

QUC125G/MSPDL	Swivel plate direction lock	125mm	200kg	161mm	128mm

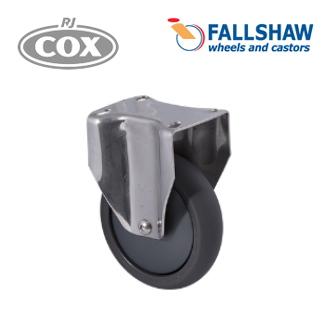

QUC125G/MSF	Fixed plate	125mm	200kg	161mm	-
QUC125G/MSH	Bolt hole	125mm	200kg	161mm	103mm

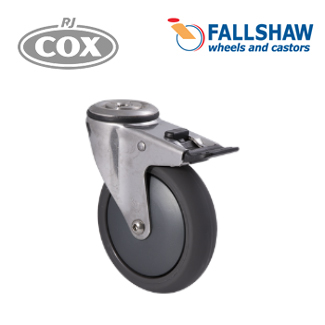

QUC125G/MZSTB	Bolt hole total brake	125mm	200kg	161mm	128mm

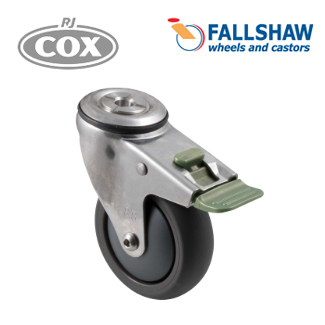

QUC125G/MZSDL	Bolt hole direction lock	125mm	200kg	161mm	128mm

These medium-duty stainless steel castors are suited to industrial trolleys, carts, mobile equipment and commercial fixtures requiring polyurethane wheels, Threadguard protection and a choice of plate, bolt-hole, brake or direction-lock configurations.
