The Fallshaw M-Series 100mm Stainless Steel Castor combines a hard white nylon wheel with corrosion-resistant stainless steel components for medium-duty trolley, cart and mobile equipment applications.

| Specification | Details |
|---|---|
| Wheel Diameter: | 100mm |
| Tread Width: | 32mm |
| Hub: | 40mm |
| Bore: | 12mm without bush |
| Bush: | 8mm |
| Wheel Material: | Hard nylon, white |
| Bearing: | Plain bearing |
| Fork Material: | 304 stainless steel |
| Maximum Load: | 150kg |
| Mount Height: | 135mm |
| Country of Manufacture: | Australia |
| Castor Code | Description | Wheel Diameter | Max Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|
| MNN100WS | 100mm diameter wheel | 100mm | 150kg | 135mm | - |
| MNN100WS/MSP | Swivel plate | 91mm | |||

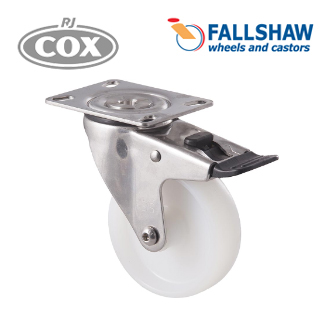

| MNN100WS/MSPTB | Swivel plate total brake | 128mm | |||

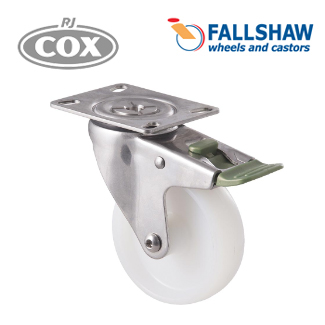

| MNN100WS/MSPDL | Swivel plate direction lock | 128mm | |||
| MNN100WS/MSF | Fixed plate | - | |||

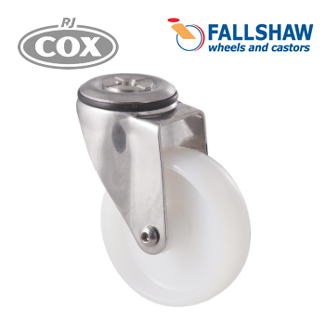

| MNN100WS/MSH | Bolt hole | 91mm | |||

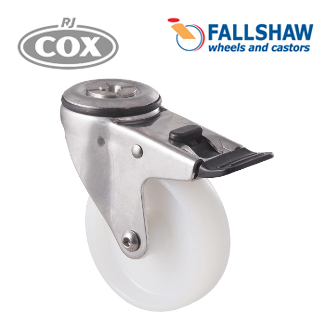

| MNN100WS/MZSTB | Bolt hole total brake | 128mm | |||

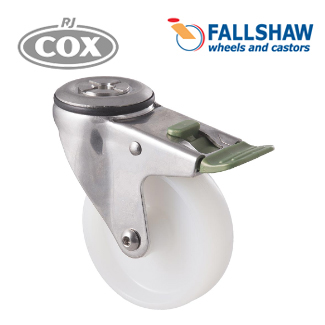

| MNN100WS/MZSDL | Bolt hole direction lock | 128mm |
These medium-duty stainless steel castors are suited to trolleys, carts, mobile equipment and commercial fixtures requiring hard nylon wheels, corrosion-resistant components and a choice of plate, bolt-hole, brake or direction-lock configurations.
