Fallshaw M Stainless Castors - 100mm Poly on Nylon Wheel
Fallshaw M Stainless Castors - 100mm Poly on Nylon Wheel
Price: AUD $31.85 (Ex GST AUD $28.95)
Enter your delivery location for a shipping quote...

The Fallshaw M-Series 100mm Stainless Steel Castor combines a polyurethane-on-polypropylene wheel with 304 stainless steel components and Threadguard protection for medium-duty commercial and industrial trolley applications.

Features of Fallshaw M-Series 100mm Stainless Steel Castor QUC100G:

  • Polyurethane-on-polypropylene wheel provides durable rolling performance for medium-duty trolleys, carts and mobile equipment.
  • 304 stainless steel fork construction provides strong corrosion resistance for demanding commercial and industrial environments.
  • Stainless steel precision bearing supports smooth and reliable wheel movement during regular use.
  • Threadguard protection helps reduce the risk of threads and debris becoming caught around the wheel and axle area.
  • Stainless steel component construction includes type 304 fork, ball bearings, axle, bolt and nut, with type 303 rivet and axle bush.
  • Chicago screw axle is supplied as standard in type 304 stainless steel, with optional nut-and-bolt or stainless steel Chicago screw configurations available.
  • Australian-made construction provides a durable castor solution manufactured by Fallshaw.

Fallshaw M-Series stainless steel castor base plate dimensions

Specifications for Fallshaw M-Series 100mm Stainless Steel Castor QUC100G:

SpecificationDetails
Wheel Diameter: 100mm
Tread Width: 32mm
Hub: 40mm
Bore: 8mm
Wheel Material: Polyurethane on polypropylene
Bearing: Stainless steel precision bearing
Fork Material: 304 stainless steel
Maximum Load: 200kg
Mount Height: 135mm
Threadguard: Supplied
Country of Manufacture: Australia

Available Fallshaw M-Series 100mm Castor Models:

Castor CodeDescriptionWheel DiameterMax LoadMount HeightTurning Radius

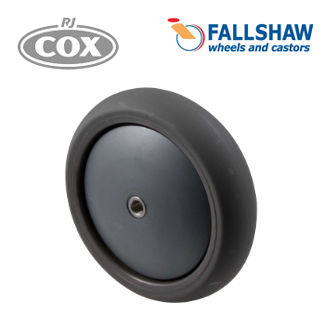

QUC100G 100mm diameter wheel 100mm 200kg 135mm -

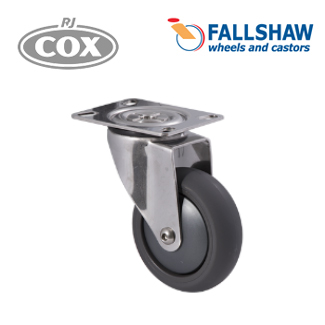

QUC100G/MSP Swivel plate 100mm 200kg 135mm 91mm

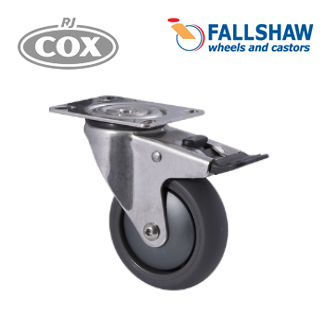

QUC100G/MSPTB Swivel plate total brake 100mm 200kg 135mm 128mm

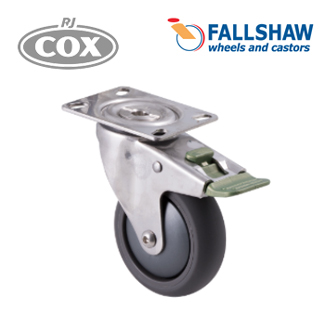

QUC100G/MSPDL Swivel plate direction lock 100mm 200kg 135mm 128mm

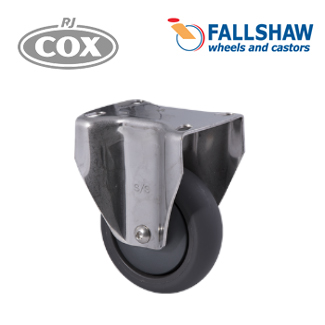

QUC100G/MSF Fixed plate 100mm 200kg 135mm -
QUC100G/MSH Bolt hole 100mm 200kg 135mm 91mm
QUC100G/MZSTB Bolt hole total brake 100mm 200kg 135mm 128mm

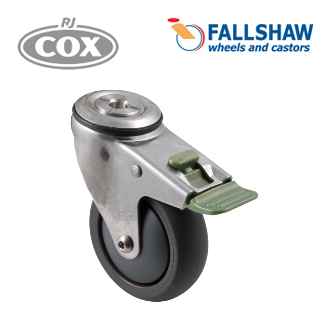

QUC100G/MZSDL Bolt hole direction lock 100mm 200kg 135mm 128mm

These medium-duty stainless steel castors are suited to industrial trolleys, carts, mobile equipment and commercial fixtures requiring polyurethane wheels, Threadguard protection and a choice of plate, bolt-hole, brake or direction-lock configurations.
