The Fallshaw M-Series 100mm Stainless Steel Castor pairs a non-marking grey rubber wheel with corrosion-resistant stainless steel components and Threadguard protection for medium-duty commercial, industrial and material handling use.

| Specification | Details |
|---|---|
| Brand: | Fallshaw |
| Item Code: | MSC100G |
| Wheel Diameter: | 100mm |
| Tread Width: | 34mm |
| Hub: | 40mm |
| Bore: | 8mm |
| Bush: | 8mm |
| Wheel Material: | Grey rubber |
| Wheel Type: | Non-marking |
| Bearing: | Stainless steel precision bearing |
| Fork Material: | 304 stainless steel |
| Maximum Load: | 140kg |
| Mount Height: | 135mm |
| Threadguard: | Supplied |
| Country of Manufacture: | Australia |
| Castor Code | Description | Wheel Diameter | Max Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|

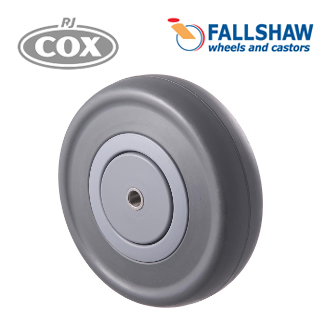

| MSC100G | 100mm diameter wheel | 100mm | 140kg | 135mm | - |

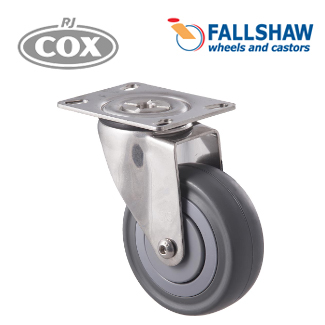

| MSC100G/MSP | Swivel plate | 91mm | |||
| MSC100G/MSPTB | Swivel plate total brake | 128mm | |||

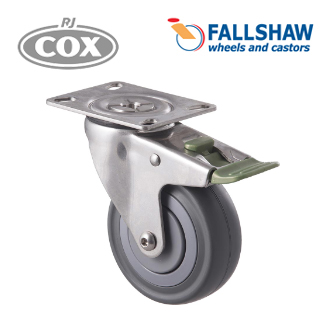

| MSC100G/MSPDL | Swivel plate direction lock | 128mm | |||
| MSC100G/MSF | Fixed plate | - | |||

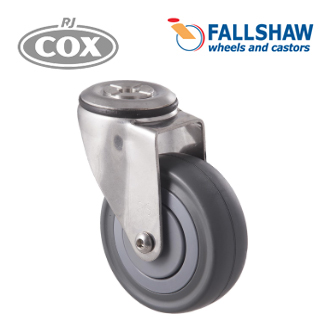

| MSC100G/MSH | Bolt hole | 91mm | |||

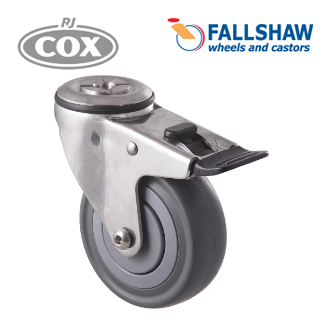

| MSC100G/MZSTB | Bolt hole total brake | 128mm | |||

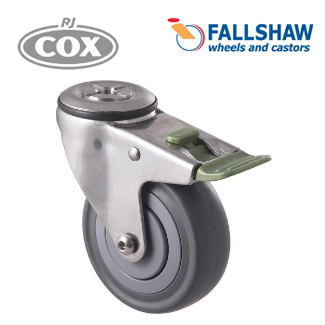

| MSC100G/MZSDL | Bolt hole direction lock | 128mm |
These medium-duty stainless steel castors are suited to trolleys, carts, mobile equipment and commercial fixtures where non-marking grey rubber wheels, corrosion-resistant components and multiple mounting or brake configurations are required.
