Fallshaw M Stainless Castors - 100mm TPE wheel

Price: AUD $34.05 (Ex GST AUD $30.95)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

The Fallshaw M-Series 100mm Stainless Steel Castor combines a thermoplastic elastomer wheel with corrosion-resistant stainless steel components and Threadguard protection for light to medium-duty commercial and industrial applications.

Features of Fallshaw M-Series 100mm Stainless Steel Castor MJC100G:

Thermoplastic elastomer wheel provides dependable rolling performance for light to medium-duty trolley and equipment applications.
304 stainless steel fork construction provides strong corrosion resistance for demanding commercial and industrial environments.
Stainless steel precision bearing supports smooth and reliable wheel movement during regular use.
Threadguard protection helps reduce the risk of threads and debris becoming caught around the wheel and axle area.
Stainless steel component construction includes type 304 fork, ball bearings, axle, bolt and nut, with type 303 rivet and axle bush.
Chicago screw axle is supplied as standard in type 304 stainless steel, with an optional regular nut-and-bolt or stainless steel Chicago screw configuration available.
Australian-made construction provides a durable castor solution manufactured by Fallshaw.

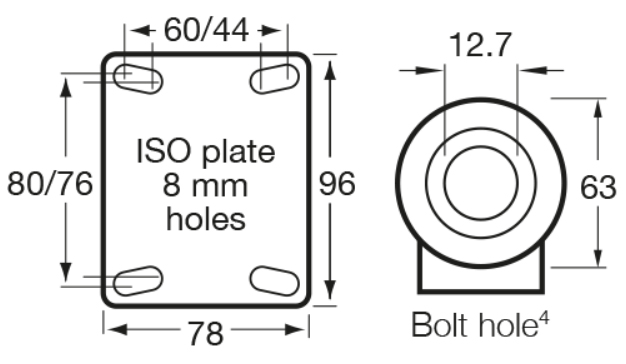

Fallshaw M-Series stainless steel castor base plate dimensions

Specifications for Fallshaw M-Series 100mm Stainless Steel Castor MJC100G:

Specification	Details
Brand:	Fallshaw
Item Code:	MJC100G
Wheel Diameter:	100mm
Tread Width:	32mm
Hub:	40mm
Bore:	8mm
Wheel Material:	Thermoplastic elastomer (TPE)
Bearing:	Stainless steel precision bearing
Fork Material:	304 stainless steel
Maximum Load:	85kg
Mount Height:	135mm
Threadguard:	Supplied
Country of Manufacture:	Australia

Available Fallshaw M-Series 100mm Castor Models:

Castor Code	Description	Wheel Diameter	Max Load	Mount Height	Turning Radius

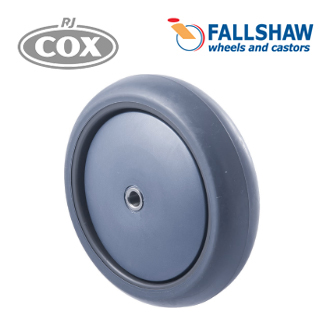

MJC100G	100mm diameter wheel	100mm	85kg	135mm	-

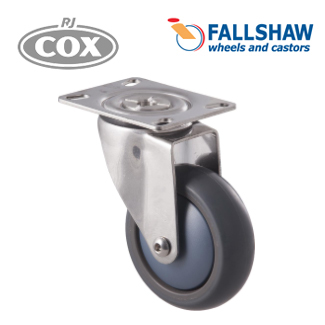

MJC100G/MSP	Swivel plate	100mm	85kg	135mm	91mm

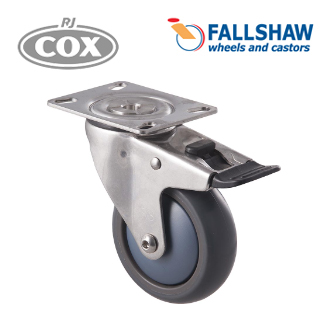

MJC100G/MSPTB	Swivel plate total brake	100mm	85kg	135mm	128mm
MJC100G/MSPDL	Swivel plate direction lock	100mm	85kg	135mm	128mm
MJC100G/MSF	Fixed plate	100mm	85kg	135mm	-

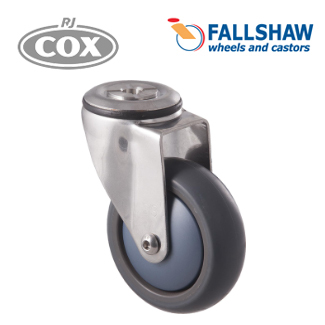

MJC100G/MSH	Bolt hole	100mm	85kg	135mm	91mm

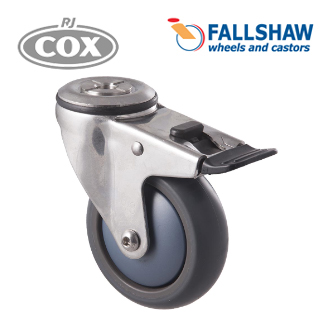

MJC100G/MZSTB	Bolt hole total brake	100mm	85kg	135mm	128mm

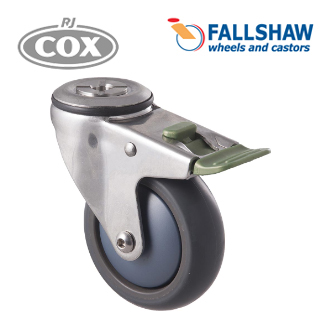

MJC100G/MZSDL	Bolt hole direction lock	100mm	85kg	135mm	128mm

These light to medium-duty stainless steel castors are suited to trolleys, carts, mobile equipment and commercial fixtures requiring TPE wheels, Threadguard protection and a choice of plate, bolt-hole, brake or direction-lock configurations.
