Fallshaw M Stainless Light-Medium Duty 85kg capacity Castors - 125mm Thermoplastic Elastomer Wheels

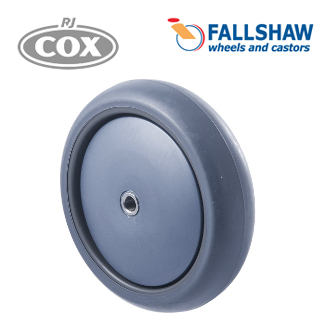

Specifications of MJC125G Wheels with Threadguard:
Diameter: | 125mm |
Tread: | 32mm |
Hub: | 40mm |
Bore: | 8mm |
Bearing: | Stainless Steel Precision Bearing |
Material: | Thermoplastic Elastomer |
Specifications for MJC125G Castors 125mm dia Wheels with Threadguard:
Castor Code | Description |
Wheel Diameter (mm) |
Max Load (kg) | Mount Height (mm) | Turning Radius (mm) |
MJC125G | 125mm dia Wheel | 125 | 85 | 161 | - |
MJC125G/MSP | Swivel Plate | 103 | |||

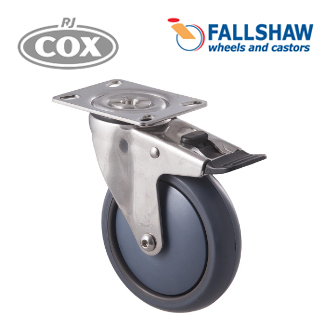

MJC125G/MSPTB | Swivel Plate Total Brake | 128 | |||

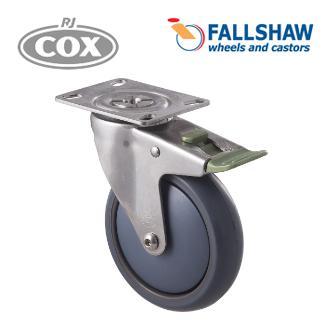

MJC125G/MSPDL | Swivel Plate Direction Lock | 128 | |||

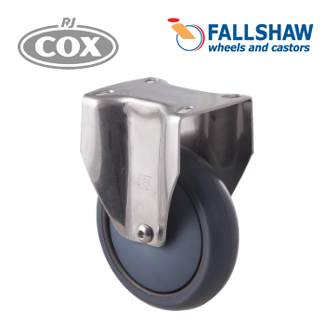

MJC125G/MSF | Fixed Plate | - | |||
MJC125G/MSH | Bolt Hole | 103 | |||

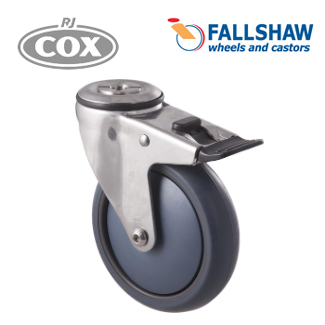

MJC125G/MZSTB | Bolt Hole Total Brake | 128 | |||

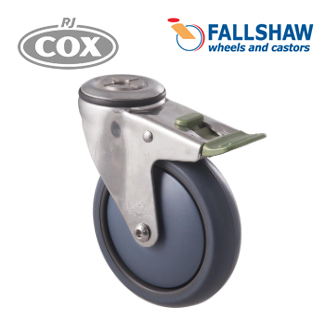

MJC125G/MZSDL | Bolt Hole Direction Lock | 128 |
