Fallshaw Core O Series Castors - 150mm PU on Nylon Wheel

Price: AUD $40.76 (Ex GST AUD $37.05)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Fallshaw O Series Heavy-Duty Castors HUR150 feature 150mm polyurethane-on-nylon wheels with a 450kg load rating. Zinc-plated CoreCoat forks and ISO or North American base plate options suit demanding industrial applications.

Features of Fallshaw O Series Heavy-Duty Castors HUR150:

Zinc-plated CoreCoat forks provide enhanced corrosion protection.
150 x 40mm polyurethane-on-nylon wheel provides durable rolling performance.
20mm bore with 12.7mm bush provides the required fitment into the fork.
ISO and North American base plate options suit different mounting requirements.
Other wheel diameters are available in 100mm, 125mm and 200mm.
Australian Made.

Specifications for Fallshaw HUR150 Wheel:

Specification	Details
Wheel Code:	HUR150
Diameter:	150mm
Tread:	40mm
Hub:	60mm
Bore:	20mm (no bush)
Bush:	12.7mm
Bearing:	Roller bearing
Material:	Polyurethane on nylon
Base Plate:	ISO standard or NA North American

Castor Configurations for Fallshaw HUR150:

Castor Code	Description	Wheel Diameter	Max Load	Mount Height	Turning Radius
HUR150	150mm dia Wheel	150mm	450kg	189mm	-

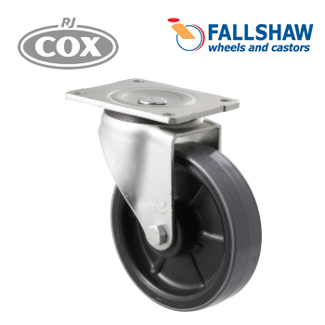

HUR150/OZP	Swivel Plate				121mm

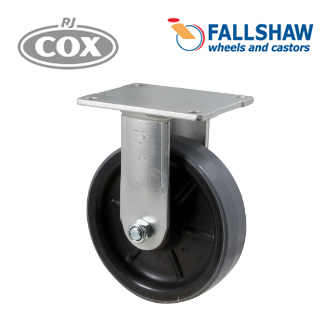

HUR150/HZF	Fixed Plate				-

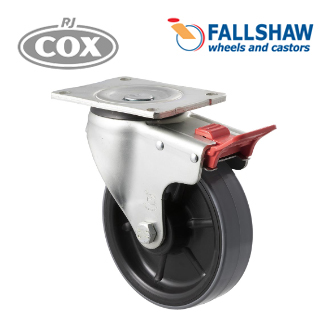

HUR150/OZPTB	Swivel Plate Total Brake				140mm
HUR150/OZPDL	Swivel Plate Direction Lock				140mm
Add N for NA Base Plate

Fallshaw O Series castor base plate mounting dimensions
