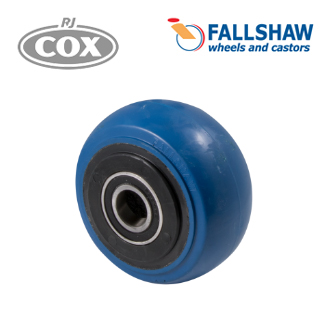

Fallshaw O Series 100mm Blue High Resilience Rubber Castor Wheel 300kg OBQ100 is an Australian-made heavy-duty wheel designed for smooth, reliable movement on trolleys, carts and industrial equipment.
| Specification | Details |
|---|---|
| Wheel Diameter: | 100mm |
| Tread Width: | 50mm |
| Hub: | 60mm |
| Bore: | 20mm without bush |
| Bush: | 12.7mm |
| Bearing: | Precision ball bearing |
| Wheel Material: | Blue high resilience rubber |
| Maximum Load: | 300kg |
| Mount Height: | 138mm |
| Manufacture: | Made in Australia |

| Castor Code | Description | Wheel Diameter | Maximum Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|
| OBQ100 | 100mm diameter wheel | 100mm | 300kg | 138mm | - |

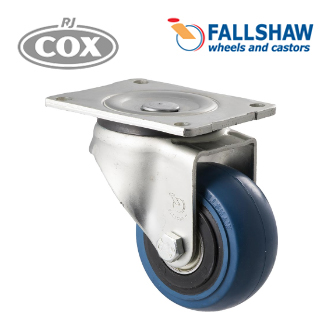

| OBQ100/OZP | Swivel plate | 100mm | 300kg | 138mm | 96mm |
| OBQ100/HZF | Fixed plate | 100mm | 300kg | 138mm | - |

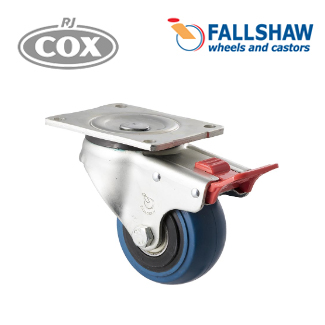

| OBQ100/OZPTB | Swivel plate total brake | 100mm | 300kg | 138mm | 140mm |

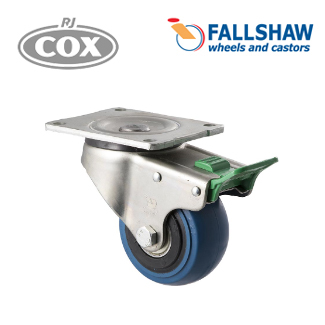

| OBQ100/OZPDL | Swivel plate direction lock | 100mm | 300kg | 138mm | 140mm |
Suited to industrial trolleys, platform carts, mobile equipment and materials handling applications where a smooth-running 100mm castor or trolley wheel is required. Fixed, swivel, brake and direction lock versions provide options for different handling needs.
