The Bicycle Patch Holding Rails provide a convenient resting spot for pedestrians and cyclists to hold on to while waiting for traffic conditions to improve.
Two design options are available: one with just a rail and the other with a fence and a target board.
Target boards are utilised when the railway is perpendicular to a pathway.
Holding Rails and Target Boards Key Features:
- The item has been treated with a process of Hot Dip Galvanisation, followed by Powder coating in Yellow
- Rails fitted with Class 1 Red & White Reflective bands
- Target Boards Reflective Aluminium Red and Yellow Chevron pattern assists in making the Rails more visible, especially at night, with a greater reflective surface area.
- Choose from three different sizes: 800mm, 1200mm or 1500mm in width
- Target Boards are used when the rail intersects a path at a right angle
- Target Boards assist in making the Rails more visible, esp. at night, with a greater area of reflective surface
- Available in Surface Mounted or Below Ground models
- Our installation process for sleeve-mounted rails allows for quick and simple replacement of any damages.
- We offer in-ground sleeves with Gibb keys for core drilled and new concrete models.
Order Codes:
BELOW GROUND MODELS | |

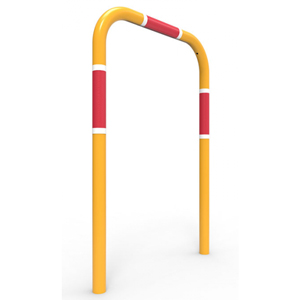

HR800-BG | Holding Rail 800 x 1000mm |

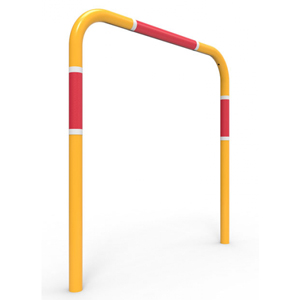

HR1200-BG | Holding Rail 1200 x 1000mm |
HR1500-BG | Holding Rail 1500 x 1000mm |
HR800TB-BG | Holding Rail with Target Board 800 x 1000mm |

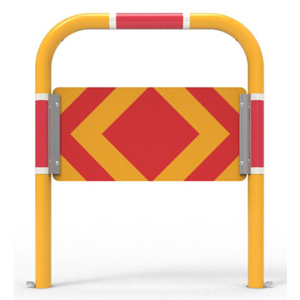

HR1200TB-BG | Holding Rail with Target Board 1200 x 1000mm |
HR1500TB-BG | Holding Rail with Target Board 1500 x 1000mm |

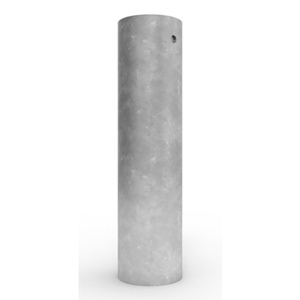

SPS60-CD | Signpost sleeve with Gibb key (2.5kg) - Core Drilled |

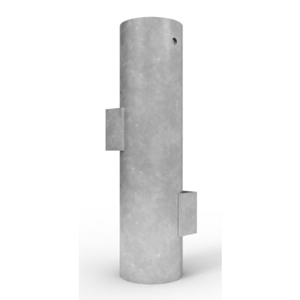

SPS60-NC | Signpost sleeve with Gibb key (2.7kg) - New concrete |
SURFACE MOUNT MODELS | |
HR800-SM | Holding Rail 800 x 1000mm |
HR1200-SM | Holding Rail 1200 x 1000mm |
HR1500-SM | Holding Rail 1500 x 1000mm |
HR800TB-SM | Holding Rail with Target Board 800 x 1000mm |
HR1200TB-SM | Holding Rail with Target Board 1200 x 1000mm |
HR1500TB-SM | Holding Rail with Target Board 1500 x 1000mm |
TARGET BOARD | |
HRTB800-RA | Holding Rail Target Board 800mm - Reflective Aluminium |
HRTB1200-RA | Holding Rail Target Board 1200mm - Reflective Aluminium |
HRTB1500-RA | Holding Rail Target Board 1500mm - Reflective Aluminium |
Specifications of Holding Rails & Target Boards
Material: | Rail 60.3mm Pipe |
Finish: | Galvanised and powdercoated with reflective bands |
Height: | 1000mm above ground |
300mm Below Ground: | |
Width: | 800, 1200 or 1500mm |
Weight: | 13kg, 16kgs or 20kg (Rail only) |
Installation: | Below Ground -Retained in a sleeve with Gibb key |
Surface Mount with M12 x 60mm sleeve anchors | |
Sleeve Material: | 76.1mm Tube |
