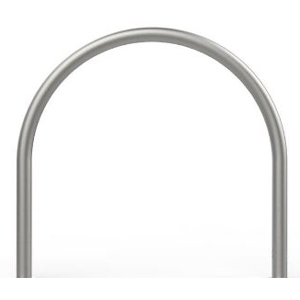

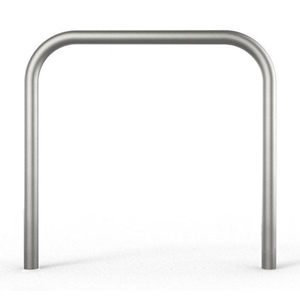

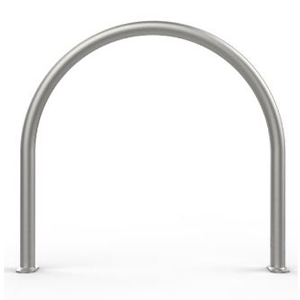

Bike Rail 316 Stainless-Steel - standard and round options

Bike Rail 316 Stainless-Steel - standard and round options
Bike Rail 316 Stainless-Steel - standard and round options
Price: AUD $491.70 (Ex GST AUD $447.00)
Enter your delivery location for a shipping quote...

Galvanised Bike Rail / Hand Rail is a durable one-piece steel solution designed for secure bicycle parking, pedestrian guidance, and impact protection in public and commercial environments.

Features of Galvanised Bike Rail / Hand Rail:

  • Dual bike capacity allows 2 adult-sized bicycles to be secured by both wheels and frame at the same time for improved security.
  • One-piece steel construction is ready for installation and does not require assembly.
  • Heavy-duty 3mm wall steel provides strength and durability for demanding outdoor and commercial applications.
  • Hot dip galvanised finish is suitable for outdoor use and helps protect the rail in exposed environments.
  • Powder-coated yellow option combines HDG and safety yellow powder coating for added durability and visibility.
  • Below-ground and surface-mounted models provide flexibility for different installation requirements.
  • 316 stainless steel option available offers an alternative material choice.
  • 800mm above-ground height is standard across all models, while below-ground models can be set deeper for a lower profile.

Specifications for Galvanised Bike Rail / Hand Rail:

SpecificationDetails
Description: One piece steel bike rail
Material: Steel pipe 48mm diameter with 3mm wall
Width: 850mm
Height Above Ground: 800mm
Below Ground Depth: 300mm (BG model only)
Finish: Galvanised (HDG) only or Galvanised (HDG) with safety yellow powder coat
Weight: 9.2kgs approx.
Installation BG: Welded concrete starter bars
Installation SM: 150mm dia x 6mm thick surface flange with 8 of 10x50mm masonry anchors supplied

Order Codes for Galvanised Bike Rail / Hand Rail:

Order CodeDescription
BR1G-BG Bike rail 850mm x 800mm high - Below-ground Galvanised
BR1P-BG Bike rail 850mm x 800mm high - Below-ground HDG and powder coated yellow
BR1G-SM Bike rail 850mm x 800mm high - Surface mount Galvanised
BR1P-SM Bike rail 850mm x 800mm high - Surface mount HDG and powder coated yellow

Galvanised bike rail illustration showing size and shape

This bike rail is suitable for schools, shopping centres, walkways, and warehouses as a secure bike rack, hand rail, pedestrian chicane, or impact protection barrier.

It supports safe bicycle parking and helps manage pedestrian and traffic flow in public and commercial spaces.
