Heavy-Duty Galvanised Steel Hoop Bollards

Price: AUD $397.10 (Ex GST AUD $361.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Heavy-Duty Galvanised Steel Hoop Bollards are suitable for Internal and External environments.

The Heavy-Duty Galvanised Hoop Bollards provide protection against heavy-duty impact and collisions in car showrooms, industrial environments, petrol station parks and many more applications.

Benefits of Heavy-Duty Hoop Bollards:

Site perimeter security
Impact barriers for pedestrian walkways and entrances
A secure and permanent obstacle preventing vehicle access
Zone protection for machinery, fixtures and buildings
Pedestrian and vehicle separation
Mounting options:
Fixed Above Ground - Surface Mount
   Fixed In-Ground    - Below Ground
   Removable In-Ground - Sleeve-lok - Lockable Sleeve for New Concrete Sleeve (NC)
   Removable In-Ground - Sleeve-lok - Lockable Sleeve for Existing Concrete Core Drilled Sleeve (CD)
Hot Dip Galvanised Finish
Powdercoated Finish available in various colours - for an additional cost

Specifications of Galvanised Hoop Bollards

Material: Mild steel
Finish: Hot dip galvanised (Powder coated custom colours optional)
Height: 1100mm above ground
Post Diameter: 90mm
Wall Thickness: 5mm
Installation: Surface Mount: Base Plate 225mm dia x 6mm thick - Fixed Bollard
Below Ground: 300mm Depth Below Ground - Fixed Bollard
Sleeve-lok: 225mm Depth Below Ground - Removable bollard - Requires Sleeves see below
Removable models: Core drilled (CD): for Existing Concrete Inground lockable Sleeve - 2 required per bollard
New Concrete (NC): for New Concrete Inground lockable Sleeve - 2 required per bollard

Part No.	Width (mm)	Type	Depth Below Ground (mm)	Centreline radius (mm)	Weight (kgs)

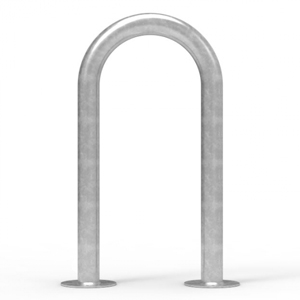

CH9050SM-G	600	Surface Mount	-	250	31.4

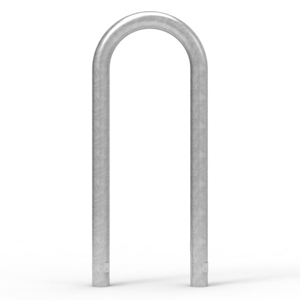

CH9050BG-G	600	Below Ground	300	250	28

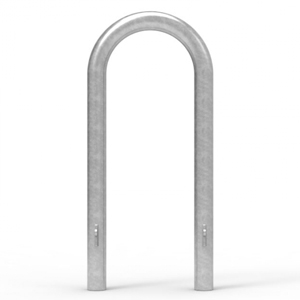

CH9050SL-G	600	Sleeve-lok	225	250	29

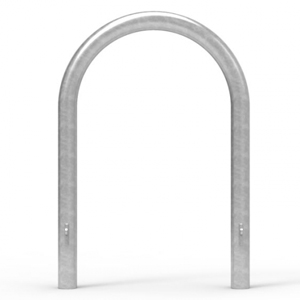

CH9081SM-G	900	Surface Mount	-	405	29.7

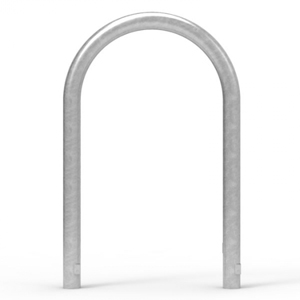

CH9081BG-G	900	Below Ground	300	405	33.2
CH9051SL-G	900	Sleeve-lok	225	405	31.2
BL90S-NC	New concrete sleeve for 90mm hoop bollard - 2 required

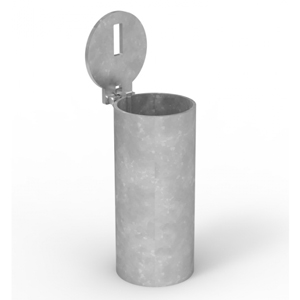

BSL90S-CD	Core Drilled sleeve for 90mm hoop bollard - 2 required
BPL2	High security 9mm shielded padlock with two keys
