Fixed Square, Heavy Duty 1000mm x 90mm Bollards are designed for traffic control and property/asset protection.
Features of Square, Fixed, Heavy Duty Bollards:
- Available for Surface Mount and Below Ground applications
- All fittings supplied
- Cast aluminium knock-in caps
- Surface mount models with fully welded base plates (Suitable for installation onto a concrete surface)
- In-ground models with fully welded starter bars
For installation into new concrete footings. Suit asphalt or any soft surface where a concrete footing will be necessary
- Standard Class 1 - Reflective band around the top of powder-coated bollards only for improved night vision
- Heavy wall mild steel
- Galvanised and powder coated or Galvanised Only
(Safety yellow powder-coated - standard colour. Other colours are available on request)

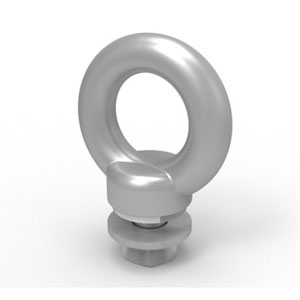

- Chain ring kits available by request (for connecting chains or ropes to bollards)
- Optional Chain rings can be retrofitted to existing bollards by drilling and tapping M10 threads (Purchase separately)
- 1200mm high x 150mm square bollard also available
Order Codes: See Part Numbers in the table below.
Specifications of Square Heavy Duty Bollard (see table below)
Material: |
Heavy wall 5mm mild steel |
Finish: |
All bollards Hot dip galvanised |
|
Additional Yellow powder coating or custom colours - with reflective band |
Part No. |
Square |
Height above ground |
Depth below ground |
Wall thickness |
Base plate diameter |
Base plate thickness |
Kgs |
Finish |

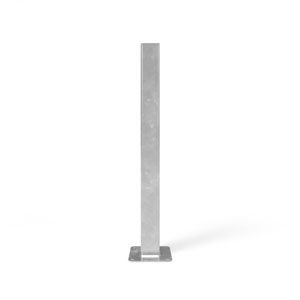

C90SM-G |
90 |
1000 |
– |
5 |
200 |
6 |
12.75 |
HDG |

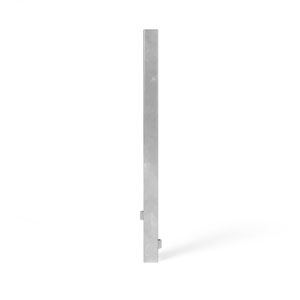

CS90BG-G |
90 |
1000 |
400 |
5 |
– |
– |
16.5 |
HDG |

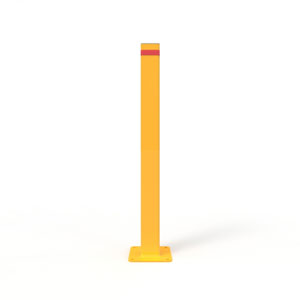

CS90SM |
90 |
1000 |
– |
5 |
200 |
6 |
12.75 |
HDG+PC |

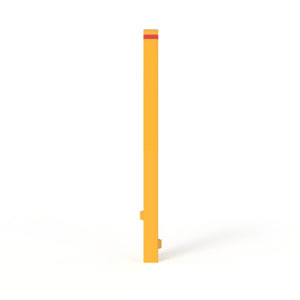

CS90BG |
90 |
1000 |
400 |
5 |
– |
– |
16.5 |
HDG+PC |
All dimensions are in mm |
