Tee-lok Surface Mount Removable Bollard designed for use where floors cannot be core drilled or penetrated, such as suspended prestressed slabs, or clean areas such as food preparation or pharmaceutical production.
Suitable for low to medium-security applications. It can separate pedestrians from vehicles and stop them from entering unauthorised areas, especially work areas.

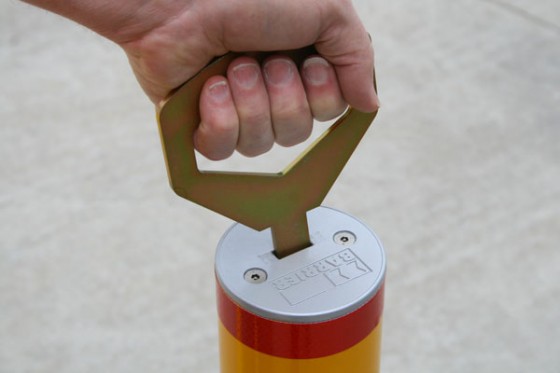

Tee-lok is structurally identical to Cam-lok, high security, keyed locking system except for the "T" handle key.
Features of Surface Mount Tee-lok Removable Bollards:
Specifications of Surface Mount Tee-Lok Removable Bollard SMTL:
Steel Post 90mm dia x 5mm wall
Hot Dip galvanised or galvanised and powder coated
Post 950mm

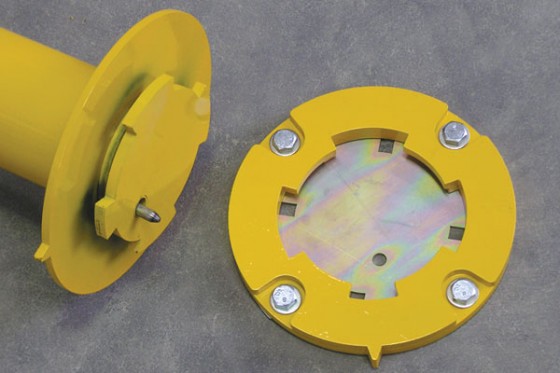

Receiver shoe 20mm high with post removed
Post 12kg.
Receiver shoe 3kg
4 of 12mm x 65mm sleeve anchor
Part No. |
Bollard Diameter (mm) | Height Above Ground (mm) | Wall Thickness (mm) | Base Plate Diameter (mm) | Base Plate thickness (mm) | Weight (Kgs) | Finish |

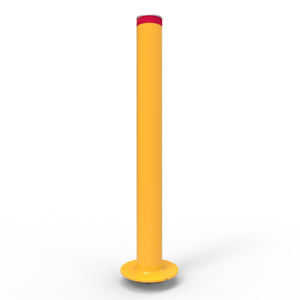

SMTL | 90 | 950 | 5 | 200 | 20 | 12 | HDG+PC |

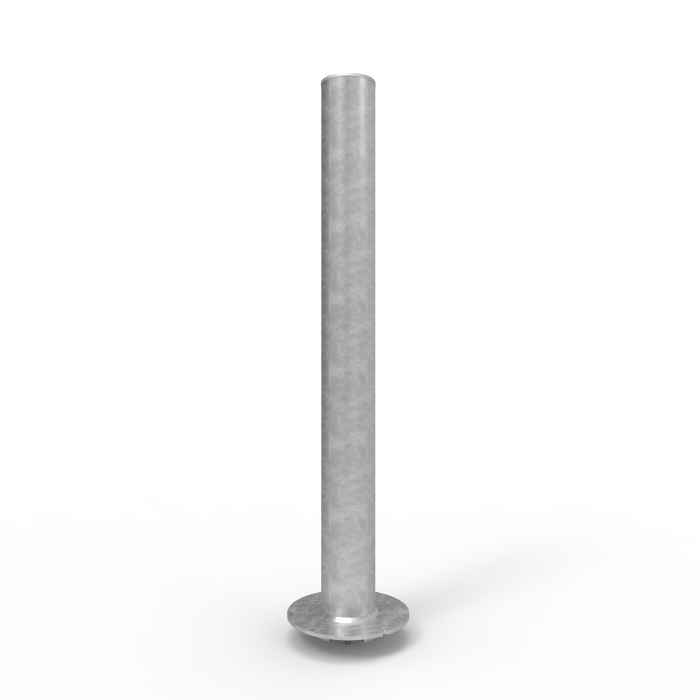

SMCL-G | 90 | 950 | 5 | 200 | 20 | 12 | HDG |
SMCL-CUS | 90 | 950 | 5 | 200 | 20 | 12 | HDG+PC |

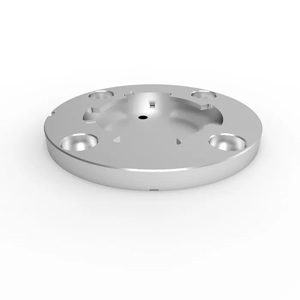

SMCLH | 20 | Surface Mount Receiver Shoe | 3 | ZP+PC | |||
SMCLH-Z | 20 | Surface Mount Receiver Shoe | 3 | ZP | |||
SMCLH-SS | 20 | Surface Mount Receiver Shoe | 3 | SS (316) | |||
SMCLH-CUS | 20 | Surface Mount Receiver Shoe | 3 | ZP+PC | |||
BRKEY-P | Additional T-Handle key for Tee-Lok |
