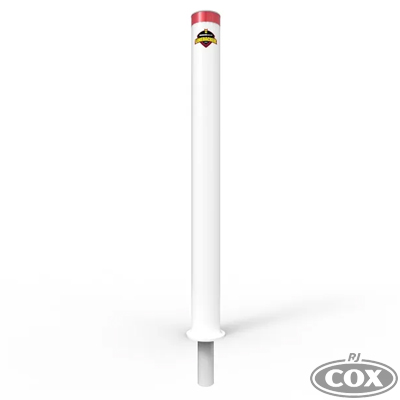

Linebacker Solid Core Bollard is a freestanding storefront crash prevention bollard where maximum pedestrian safety is required.

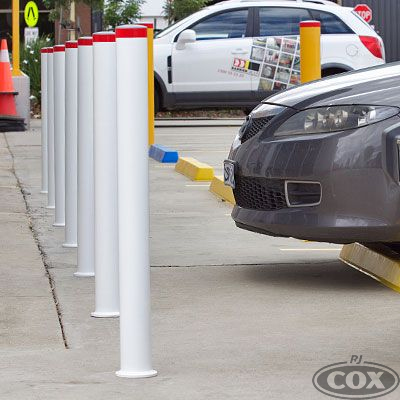

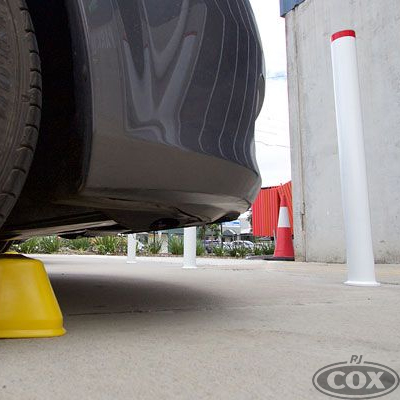

Linebacker Solid Core Bollard is designed to be installed as a protective device between the storefront parking spaces and pedestrian walkways to provide customer safety at petrol stations and convenience stores.
The SC has a solid hardened 50mm diameter core at its centre with a 90mm diameter x 5mm thick outer casing.
Installation is by core drilling 150mm into reinforced concrete. With no tripping hazards, it is ideal for use around pedestrians. As it is core drilled into the surface, it can be removed when necessary for access to equipment that may require periodic servicing or maintenance
Part No.: | LBR90-SM |
Bollard Diameter: | 90mm |
Bollard Height: | 1000mm |
Bollard Wall thickness: | 5mm |

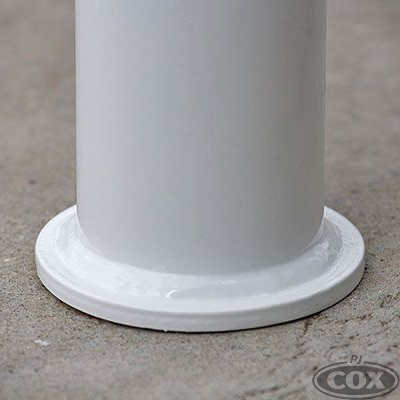

Bollard Base plate diameter: | 165mm |
Bollard Base plate thickness: | 8mm |
Steel core diameter: | 50mm |
Steel core below ground depth: | 150mm |
Weight: | 29.5kg |
Finish: | Hot Dip Galvanised, then Powdercoated |
