High-Security Cam-lok Surface Mounted Removable Bollards with registered keys designed for applications where the floor cannot be core drilled or penetrated, such as suspended or pre-stressed slabs or clean areas such as food preparation or pharmaceutical processing.

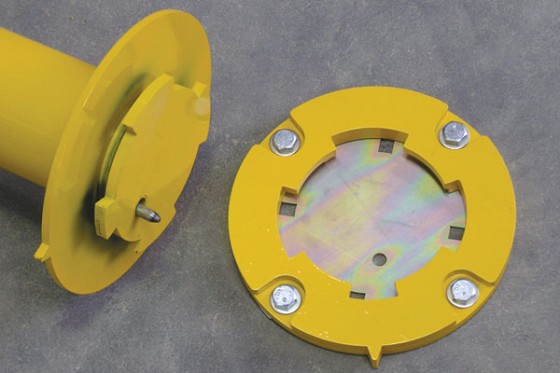

Bollard locks into the surface-mounted receiver shoe (Sold separately) via an internal locking system using high-security cam locks with registered keys.
Features of Cam-lok Surface Mounted Bollards with registered keys:
Specifications of Cam-Lok surface mount removable bollards:
Steel post 90mm diameter with 5mm wall or Stainless-Steel post x 3.05mm wall
Hot dipped galvanised, Hot Dip Galvanised before powder coat or 316 Stainless Steel
Post 950mm - Receiver shoe only 20mm high with post removed (sold separately)
Post 11.9kg - Receiver shoe 2.9kg (sold separately)
4 off 12 x 65mm sleeve anchors
Part No. |
Bollard Diameter (mm) | Height Above Ground (mm) | Wall Thickness (mm) | Base Plate Diameter (mm) | Base Plate thickness (mm) | Weight (Kgs) | Finish |

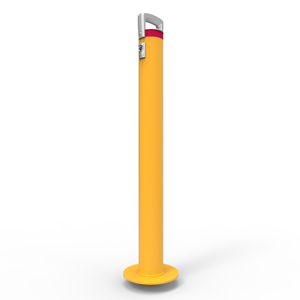

SMCL | 90 | 950 | 5 | 200 | 20 | 12 | HDG+PC |

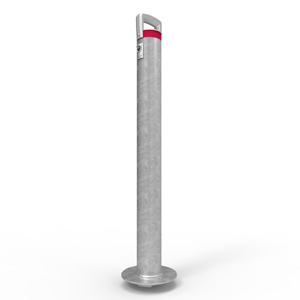

SMCL-G | 90 | 950 | 5 | 200 | 20 | 12 | HDG |

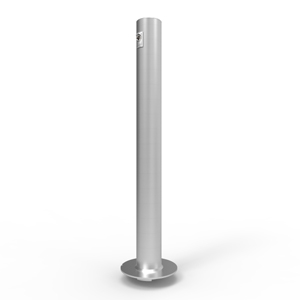

SMCL-SS | 90 | 950 | 3.05 | 200 | 20 | 12 | SS |
SMCL-CUS | 90 | 950 | 5 | 200 | 20 | 12 | HDG+PC |

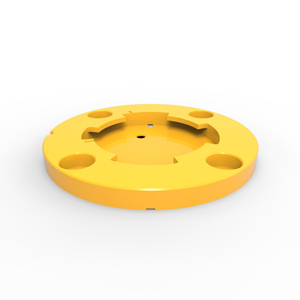

SMCLH | 20 | Surface Mount Receiver Shoe | 3 | ZP+PC | |||

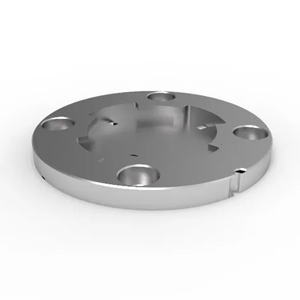

SMCLH-Z | 20 | Surface Mount Receiver Shoe | 3 | ZP | |||
SMCLH-SS | 20 | Surface Mount Receiver Shoe | 3 | SS | |||
SMCLH-CUS | 20 | Surface Mount Receiver Shoe | 3 | ZP+PC | |||
BCLKEY | Additional Cam-Lok registered key |
Product Code: SMCL
