Galvanised Bike Rail / Hand Rail is a durable one-piece steel solution designed for secure bicycle parking, pedestrian guidance, and impact protection in public and commercial environments.
| Specification | Details |
|---|---|
| Description: | One piece steel bike rail |
| Material: | 48mm diameter steel pipe with 3mm wall |
| Dimensions (L x W x H): | 850 x 48 x 800mm (above ground) |
| Below Ground Depth: | 300mm (BG models) |
| Width: | 850mm |
| Height Above Ground: | 800mm |
| Finish Options: | Hot dip galvanised or galvanised with safety yellow powder coat |
| Weight: | 9.2kgs approx. |
| Installation Below Ground: | Welded concrete starter bars |
| Installation Surface Mount: | 150mm diameter flange with 10x50mm masonry anchors supplied |
| Order Code | Description |
|---|---|
| BR1G-BG | Below-ground galvanised bike rail 850mm wide x 800mm high |

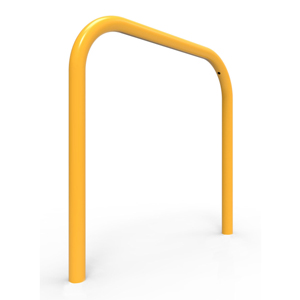

| BR1P-BG | Below-ground galvanised and powder-coated yellow bike rail 850mm wide x 800mm high |

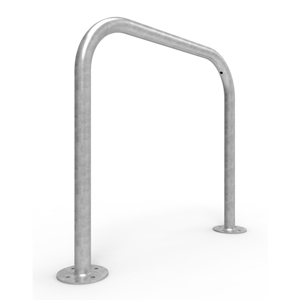

| BR1G-SM | Surface mount galvanised bike rail 850mm wide x 800mm high |

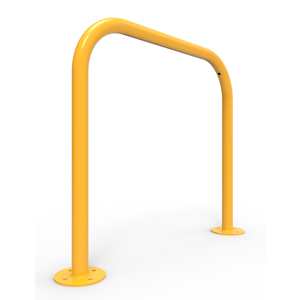

| BR1P-SM | Surface mount galvanised and powder-coated yellow bike rail 850mm wide x 800mm high |
This bike rail is widely used as a bike rack, hand rail, or protective barrier in schools, shopping centres, warehouses, and pedestrian walkways.
It provides secure bicycle parking while also serving as a safety rail or impact barrier in high-traffic areas.
