One-Piece Double Rail U-Bars is a modular, one-piece, steel U-bar double rail barrier suitable for pedestrian and traffic management. Protect pedestrians at crossing points and keep vehicles away from assets or work areas.
Double Rail U-Bars are used in and around warehouses, schools and factories.
Features of One-Piece Double Rail U-Bars:
Order Codes See Table Below
Specifications of One-Piece Double Rail U-Bars
Fully welded one-piece construction Double Rail
Heavy 3mm wall steel pipe 48.3mm diameter
1m, 1.5m & 2m
1040mm above ground
Knee Rail 5800mm high - fully welded
Below Ground - c/w welded concrete starter - 300mm Depth below ground
Surface Mount - base plate 150 x 75 x 10mm - Fixings supplied
(HDG) Hot Dip Galvanised ONLY
(PC) Hot Dip Galvanised with Powdercoated surface finish
Part No. | Length | Type | Weight (Approx) | Height |

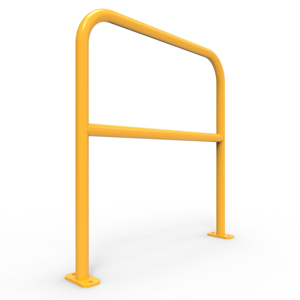

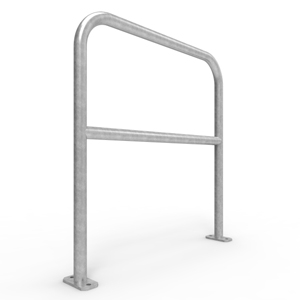

UBD100SM | 1000mm | Surface Mount | 16kgs | 1040mm |

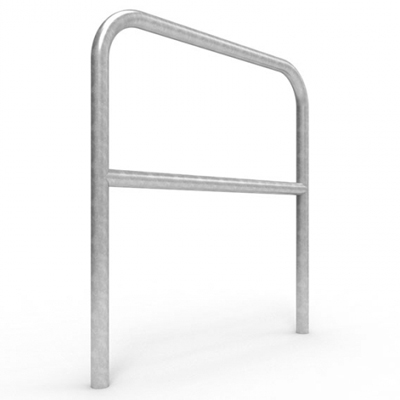

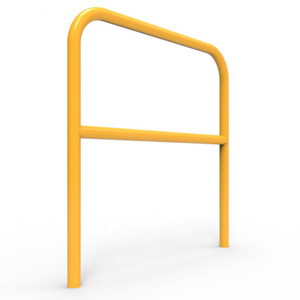

UBD100BG | 1000mm | Below Ground | 16kgs | 1040mm |

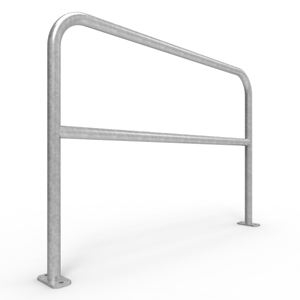

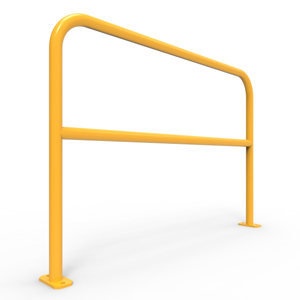

UBD150SM | 1500mm | Surface Mount | 19.5kg | 1040mm |

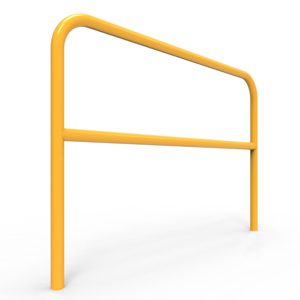

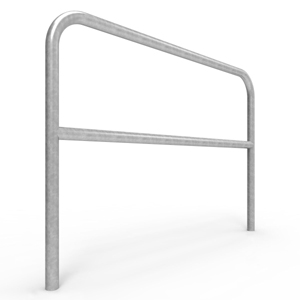

UBD150BG | 1500mm | Below Ground | 19.5kg | 1040mm |

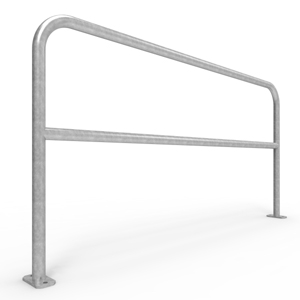

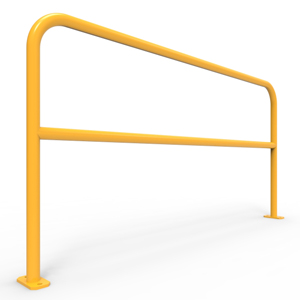

UBD200SM | 2000mm | Surface Mount | 23.5kg | 1040mm |

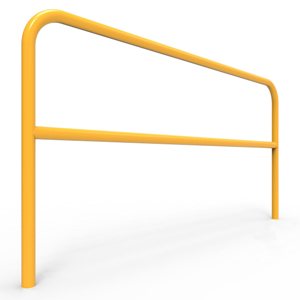

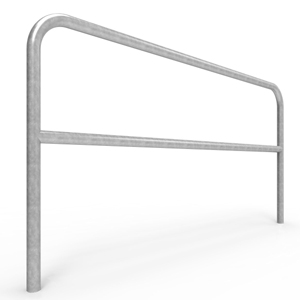

UBD200BG | 2000mm | Below Ground | 23.5kg | 1040mm |
