Material Lifter Trolley Hand Winch operated mast style lift trolley

Price: AUD $1,628.00 (Ex GST AUD $1,480.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

The ML2 Multi-Purpose Lifting Trolley is designed for lifting and moving weights up to 120kg to various heights. It can be equipped with a table platform or forks.

Features of ML2 Multi-purpose Lifting Trolley:

External Winch Locks the load at the current height when the operator releases the winch handle

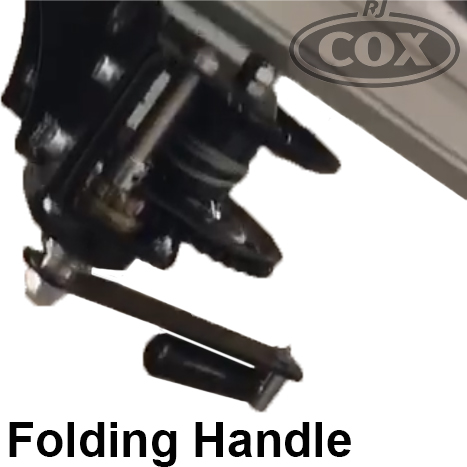

Winch Handle folds allow the trolley to lay flat
Single compact and reliable aluminium mast
The cable is hidden inside the mast, preventing injury

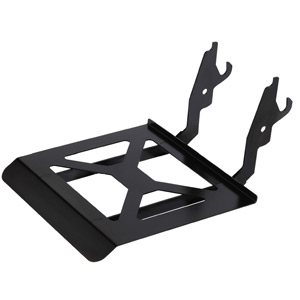

Option of Tray Table Platform or Adjustable Width Forks
Foldable design makes transporting easy in vans and trucks or when storing on shelves or benches
Ready to use in 30 seconds
10-inch solid puncture-proof wheels

Carton Dimensions: 50 x 30 x 135cm
Shipping Weight: 30.2kgs

Specifications for ML2 Mobile Material Lifter Trolley:

Lifting Height:	105cm
Max. Capacity with Tray:	120kg
Max Capacity with Forks:	150kg
Operating Dimensions:	Width 71cm x Length 50cm x Height 132cm
Folded Dimensions:	Height 30cm x Width 50cm x Length 132cm
Standard Platform Dimensions:	360mm x 420mm
Larger Platform Dimensions:	450mm x 421mm
Fork Width:	50mm
Fork Length:	460mm Rear to Tip
Minimum Opening Width:	200mm Between and 300mm Edge to Edge of Forks
Maximum Opening Width:	485mm Between and 590mm Edge to Edge of Forks
Sliding allowance:	150mm
Unit Weight:	20kg

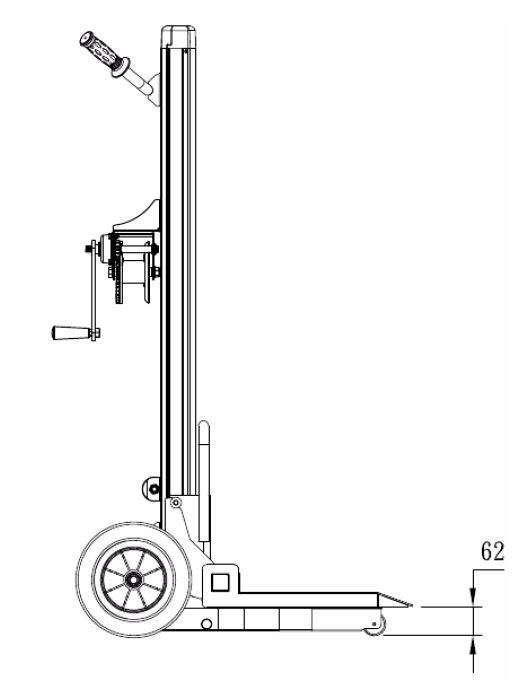

ML2 with External Winch (drawing above)

Little Lakkey Dual Purpose Lifting Hand Truck

Standard Platform ML1 Lakky Supplied standard with tray platform
