Fallshaw K Series Castors - 100mm TPE Wheel

Price: AUD $12.16 (Ex GST AUD $11.05)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Fallshaw K Series KJQ100G Castors feature 100mm grey thermoplastic elastomer wheels with threadguards and a 50kg load rating for light-duty trolley and equipment applications.

Features of Fallshaw K Series KJQ100G Castors:

100mm grey thermoplastic elastomer wheel provides smooth rolling for light-duty use.
Threadguard helps reduce thread and debris wrapping around the axle.
Zinc-plated CoreCoat forks provide enhanced corrosion protection.
65mm, 75mm and 100mm wheel diameters are available in the range.
Australian Made.

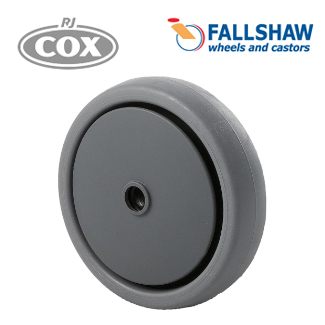

Specifications for Fallshaw KJQ100G Wheel:

Specification	Details
Diameter:	100mm
Tread:	23mm
Hub:	30mm
Bore:	8mm
Bearing:	Plain bearing
Material:	Grey thermoplastic elastomer

Castor Configurations for Fallshaw KJQ100G:

Castor Code	Description	Wheel Diameter	Max Load	Mount Height	Turning Radius
KJQ100G	100mm dia Wheel	100mm	50kg	131mm	-

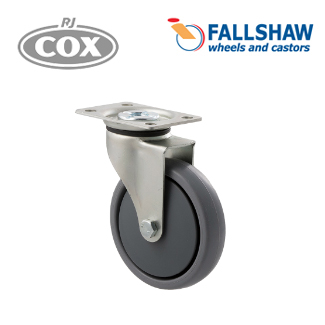

KJQ100G/KZP	Swivel Plate				82mm

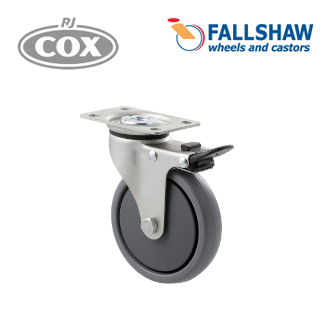

KJQ100G/KZPTB	Swivel Plate Total Brake				89mm

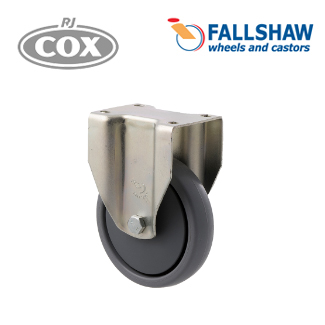

KJQ100G/KZF	Fixed Plate				-

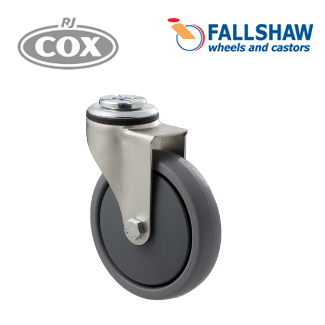

KJQ100G/KZH	Bolt Hole				82mm
KJQ100G/KZHTB	Bolt Hole Total Brake				89mm

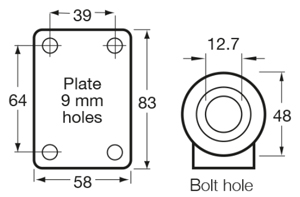

Fallshaw K Series castor mounting dimensions
