Fallshaw K Series Castors - 100mm Grey Rubber Wheel

Price: AUD $11.06 (Ex GST AUD $10.05)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Fallshaw K Series KSA100 Castors feature 100mm grey rubber wheels with a 50kg load rating. Zinc-plated CoreCoat forks provide corrosion protection for medium-duty applications.

Features of Fallshaw K Series KSA100 Castors:

100mm grey rubber wheel provides smooth rolling for general equipment and trolley use.
12mm bore with 8mm hardened steel bush provides secure fitment into the fork.
Zinc-plated CoreCoat forks provide enhanced corrosion protection.
65mm, 75mm and 100mm wheel diameters are available in the K Series.
Australian Made.

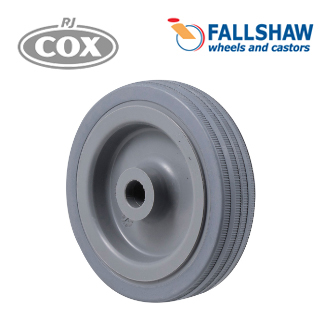

Specifications for Fallshaw KSA100 Wheel:

Specification	Details
Diameter:	100mm
Tread:	23mm
Hub:	30mm
Bore:	12mm (no bush)
Bush:	8mm
Bearing:	Plain bearing
Material:	Grey rubber

Castor Configurations for Fallshaw KSA100:

Castor Code	Description	Wheel Diameter	Max Load	Mount Height	Turning Radius
KSA100	100mm dia Wheel	100mm	50kg	131mm	-
KSA100/KZP	Swivel Plate				82mm

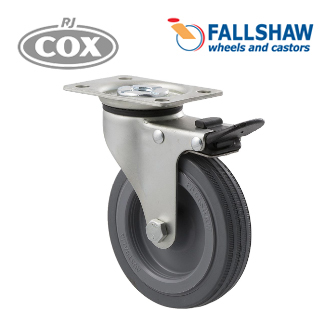

KSA100/KZPTB	Swivel Plate Total Brake				89mm

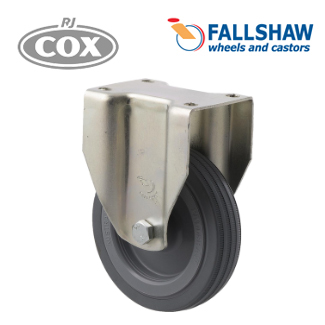

KSA100/KZF	Fixed Plate				-

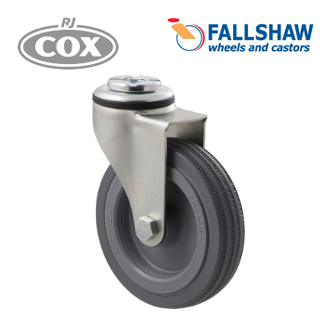

KSA100/KZH	Bolt Hole				82mm

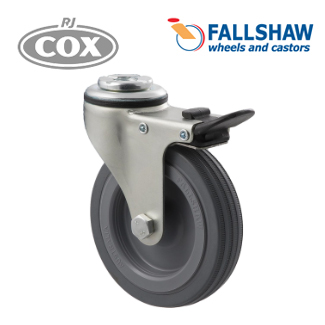

KSA100/KZHTB	Bolt Hole Total Brake				89mm

Fallshaw K Series castor mounting dimensions
