Fallshaw K Series KSA75 Castors are light-duty castors with 75mm grey rubber wheels and a 50kg load rating. Zinc-plated CoreCoat forks provide enhanced corrosion protection for general trolley and equipment applications.
| Specification | Details |
|---|---|
| Diameter: | 75mm |
| Tread: | 23mm |
| Hub: | 30mm |
| Bore: | 12mm (no bush) |
| Bush: | 8mm |
| Bearing: | Plain bearing |
| Castor Code | Description | Wheel Diameter | Max Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|
| KSA75 | 75mm dia Wheel | 75mm | 50kg | 104mm | - |
| KSA75/KZP | Swivel Plate | 69mm | |||

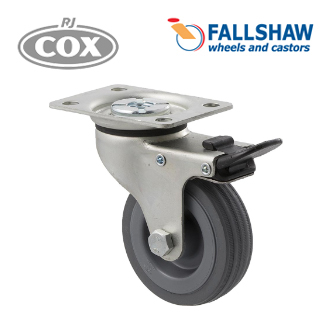

| KSA75/KZPTB | Swivel Plate Total Brake | 89mm | |||
| KSA75/KZF | Fixed Plate | - | |||

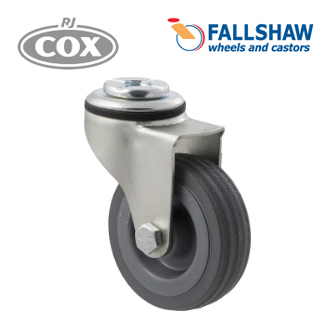

| KSA75/KZH | Bolt Hole | 69mm | |||
| KSA75/KZHTB | Bolt Hole Total Brake | 89mm |
Note: The supplied source lists the wheel as grey rubber in the product description but lists the material as hard nylon (black) in the wheel specification table. The conflicting material entry has been omitted pending confirmation.
