Fallshaw K Series KSA65 Castors feature 65mm grey rubber wheels with a 50kg load rating. Zinc-plated CoreCoat forks provide enhanced corrosion protection for light-duty trolley and equipment applications.
| Specification | Details |
|---|---|
| Diameter: | 65mm |
| Tread: | 23mm |
| Hub: | 30mm |
| Bore: | 12mm (no bush) |
| Bush: | 8mm |
| Bearing: | Plain bearing |
| Material: | Grey rubber |
| Castor Code | Description | Wheel Diameter | Max Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|
| KSA65 | 65mm dia Wheel | 65mm | 50kg | 96mm | - |

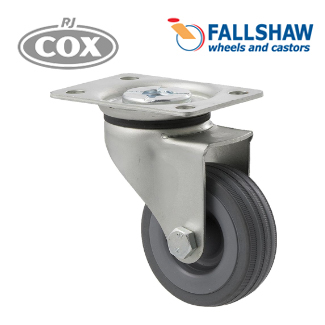

| KSA65/KZP | Swivel Plate | 63mm | |||

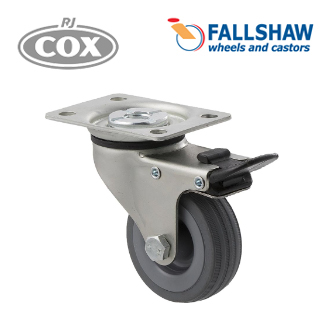

| KSA65/KZPTB | Swivel Plate Total Brake | 89mm | |||

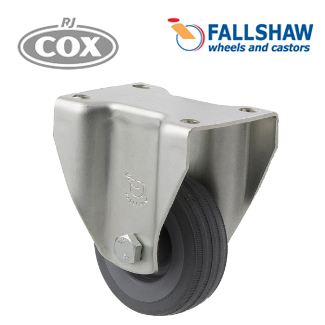

| KNN65/KZF | Fixed Plate | - | |||

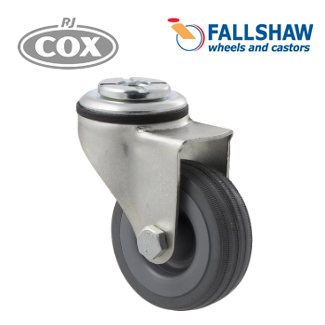

| KNN65/KZH | Bolt Hole | 63mm | |||

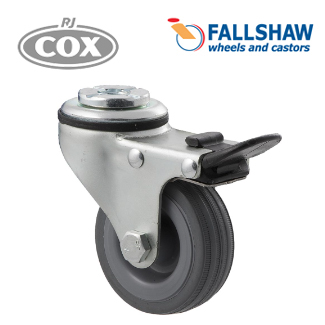

| KNN65/KZHTB | Bolt Hole Total Brake | 89mm |
Note: The supplied data lists KNN65 codes for the fixed and bolt-hole configurations; these have been retained as provided.
