Fallshaw K Series Castors - 75mm Polyurethane Wheel

Price: AUD $14.91 (Ex GST AUD $13.55)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Fallshaw K Series KUQ75 Castors are medium-duty castors with 75mm polyurethane wheels and a 100kg load rating, suited to trolleys, equipment and general material handling applications.

Features of Fallshaw K Series KUQ75 Castors:

75mm polyurethane wheel provides durable rolling performance.
Zinc-plated CoreCoat forks provide enhanced corrosion protection.
Precision bearing supports smooth operation.
75mm and 100mm wheel diameters are available in the range.
Australian Made.

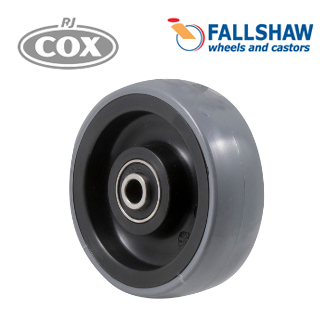

Specifications for Fallshaw KUQ75 Wheel:

Specification	Details
Diameter:	75mm
Tread:	23mm
Hub:	30mm
Bore:	8mm
Bearing:	Precision bearing
Material:	Polyurethane

Castor Configurations for Fallshaw KUQ75:

Castor Code	Description	Wheel Diameter	Max Load	Mount Height	Turning Radius
KUQ75	75mm dia Wheel	75mm	100kg	104mm	-
KUQ75/KZP	Swivel Plate				69mm
KUQ75/KZPTB	Swivel Plate Total Brake				89mm

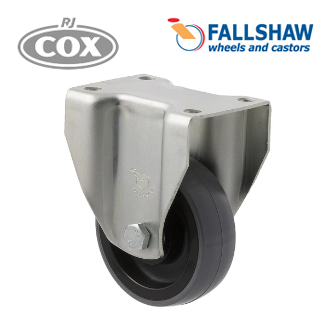

KUQ75/KZF	Fixed Plate				-
KUQ75/KZH	Bolt Hole				69mm

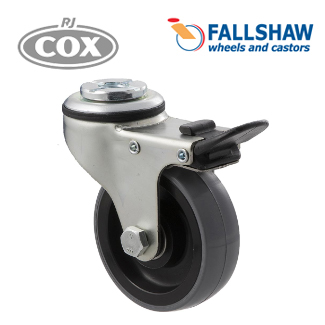

KQ75/KZHTB	Bolt Hole Total Brake				89mm

Note: The supplied heading describes the wheel as Thermoplastic Elastomer (TPE), while the wheel specifications list Polyurethane. Polyurethane has been retained as the stated wheel material.

Fallshaw K Series castor mounting dimensions
